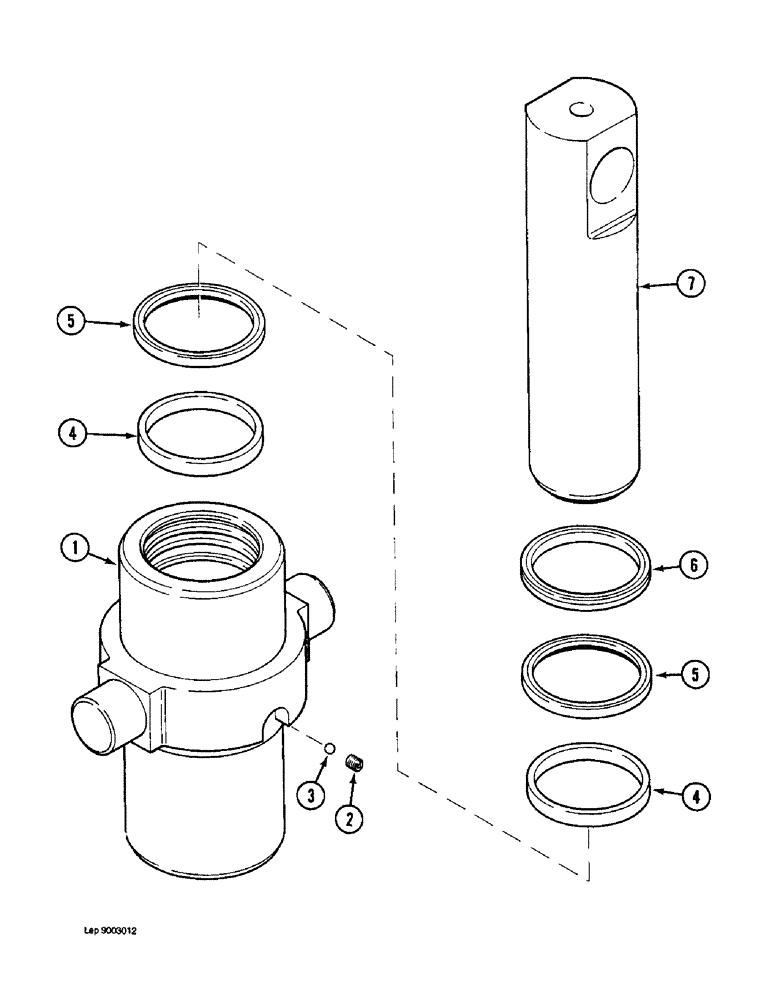

Запчасти Case 1088 (7-22) - LEVELER CYLINDER, P.I.N. FROM 106901 AND AFTER (07) - BRAKES

P8646712

CYLINDER ASSY.

CYLINDER ASSEMBLY - leveler, (Replaces P8246779), Includes: Ref. 1 - 7

1шт.

1

P4549331

JACK BODY

TUBE - cylinder, (Replaces P4549328)

1шт.

2

P933009

SCREW

- bleed

1шт.

3

P31002

BALL

- bleed

1шт.

P5949653

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 4 - 6

1шт.

4

P9646004

BAND

WEAR RING - piston

2шт.

5

P9646005

GASKET

SEAL -, Serial Range: tube-piston

2шт.

6

P9646006

WIPER SEAL

WIPER - piston, outer

1шт.

7

P3249449

PISTON ROD

ROD - cylinder

1шт.
