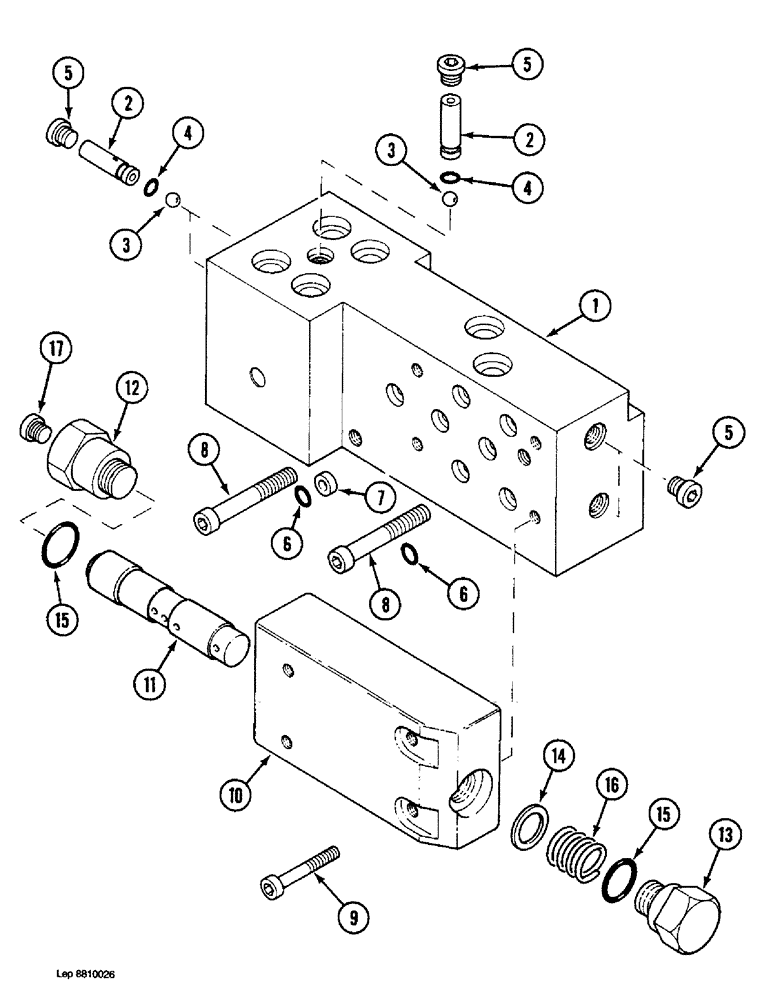

Запчасти Case 1088 (7-20) - BRAKE RELEASE VALVE (07) - BRAKES

P4343351

BLOCK ASSY.

VALVE ASSEMBLY - brake release, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

2

P729797

SEAT

SPOOL - flow control valve

3шт.

3

P31002

BALL

- seat

3шт.

4

P2930401

O-RING

- spool valve

3шт.

5

P3037405

PLUG

- valve

5шт.

6

P2230422

O-RING

- body to brake valve body

7шт.

7

P3743256

JET

ORIFICE - valve

1шт.

8

P32918

SCREW

BOLT - hex socket, 6 mm x 45 mm

2шт.

9

P32924

SCREW

BOLT - hex socket, 8 mm x 35 mm

4шт.

P4343325

VALVE

BRAKE RELEASE VALVE - control valve, Includes: Ref. 10 - 17

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - brake release valve

1шт.

11

NSS

NOT SOLD SEPARAT

SPOOL - brake release valve

1шт.

12

P3337415

PLUG

BODY - brake release valve, upper

1шт.

13

P3337416

PLUG

BODY - brake release valve, lower

1шт.

14

P2745459

WASHER

- valve

1шт.

15

P2930450

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

- lower body

1шт.

16

P138160

COMPRESSION SPRING

SPRING - brake release valve

1шт.

17

P2537447

PLUG

- body, upper

1шт.

P7046042

SEAL

- plug

1шт.
