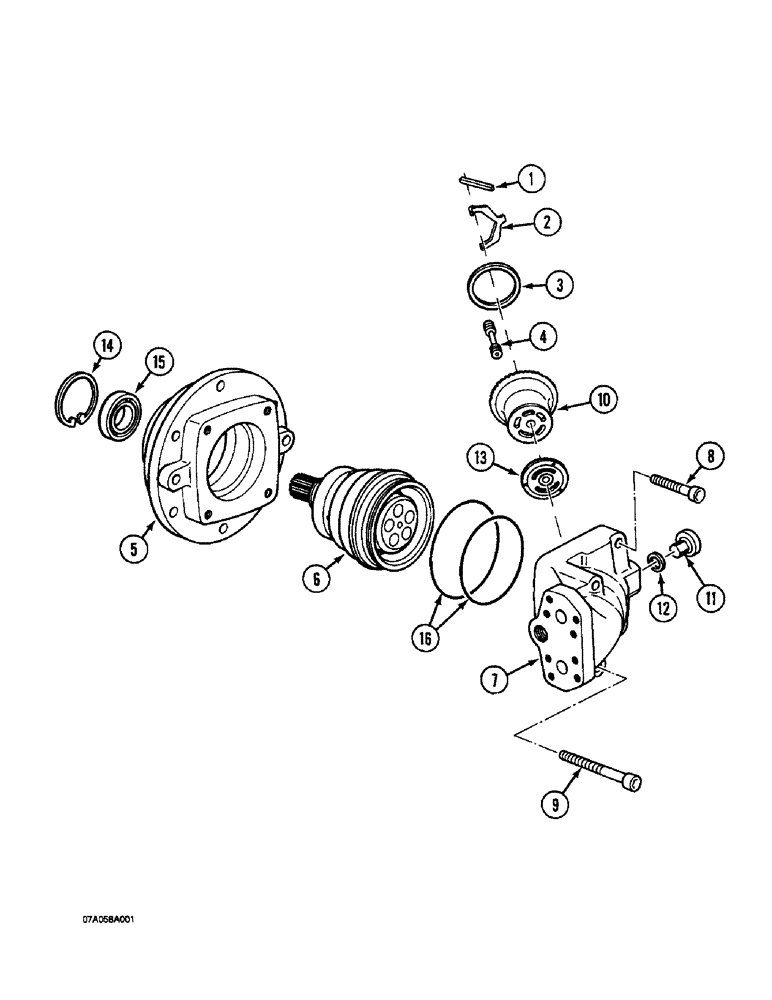

Запчасти Case 1088 (7-16) - TRACK DRIVE HYDRAULIC MOTOR (07) - BRAKES

P2343781

MOTOR, HYDRAULIC

HYDRAULIC MOTOR ASSEMBLY - track drive, (See T.I.N. 3301), Includes: Ref. 1 - 16

2шт.

1

NSS

NOT SOLD SEPARAT

PIN - cylinder block

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - cylinder block

1шт.

3

NSS

NOT SOLD SEPARAT

RING - cylinder block

1шт.

4

P1729868

PISTON

- cylinder block

5шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - motor, front

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - motor

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - motor, rear

1шт.

8

P632935

SCREW

BOLT - hex socket, 12 mm x 70 mm, grade 10.9

2шт.

9

P732916

SCREW

BOLT - hex, 12 mm x 120 mm

2шт.

10

P150224

LOCK, CYLINDER

BLOCK - cylinder

1шт.

11

P3237480

PLUG

- rear housing

1шт.

12

P1245273

WASHER

SEAL - plug

1шт.

13

P8346205

ELEC SUPPORT PLATE

PLATE - valve

1шт.

14

P936325

RING, SNAP

SNAP RING - washer retaining

1шт.

P5449674

SEAL PACKAGE

KIT - repair, seal, Includes: Ref. 15 and 16

1шт.

15

P7146036

OIL SEAL

SEAL - shaft, front housing, (Order P9646056)

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - shaft assembly

2шт.
