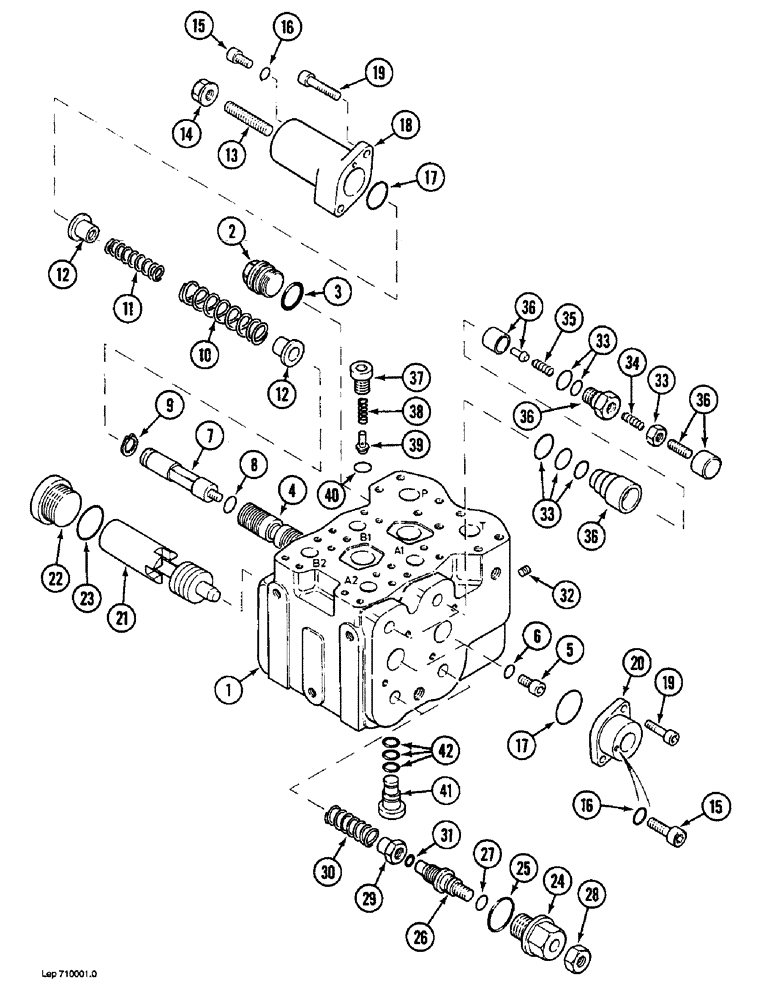

Запчасти Case 1088 (7-14) - DRIVE CONTROL VALVE (07) - BRAKES

P3343658

BLOCK ASSY.

TRACK DRIVE VALVE ASSEMBLY - excavator, (Order P4143637) (See Figure 7-15A), Includes: Ref. 1 - 42

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - track drive valve

1шт.

2

P3337431

PLUG

- body, Includes: Ref. 3

1шт.

3

P5449693

SEAL PACKAGE

KIT - seal, plug

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL - valve, track drive

1шт.

5

P3237499

PLUG

- spool

2шт.

6

P2930445

O-RING

SEAL - plug

2шт.

7

P6027893

END FITTING

GUIDE - spring

2шт.

8

P2930444

O-RING

SEAL -, Serial Range: spool-guide

2шт.

9

P936357

RING, SNAP

SNAP RING -, Serial Range: seat-guide

2шт.

10

P1538190

SPRING

- spool, large

2шт.

11

P1538191

SPRING

- spool, small

2шт.

12

P8346236

CUPEL

SEAT - spring

4шт.

13

P3533053

SCREW

- end cap

2шт.

14

P2434588

NUT

- hex, self-locking

2шт.

15

P1533023

SCREW

PLUG - bleed screw

4шт.

P5949638

SEAL PACKAGE

KIT - seal, end cap, (Replaces P5449692), Includes: Ref. 16 and 17

2шт.

16

P9646007

BUSHING

WASHER - end cap

2шт.

17

P130469

O-RING,40.95MM ID x 2.62MM Width

- end cap

2шт.

18

P5240320

CAP

- spool end

2шт.

19

P3533034

SCREW

BOLT - hex, 6 mm x 16 mm

8шт.

20

P5140358

CAP

- spool end

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL - flow control valve

2шт.

22

P3337402

PLUG

- flow control valve

2шт.

23

P2930442

O-RING

- plug

2шт.

24

P3240429

CAP

BODY - flow control valve

2шт.

25

P30458

O-RING,0.103" Thk x 1.174" ID, -123, Cl 6, 90 Duro

- body, large, (Replaces P2930446)

2шт.

26

P1928024

SCREW

GUIDE - spring

2шт.

27

P2930455

O-RING

- body, small

2шт.

28

P34204

NUT

- hex, 12 mm

2шт.

29

P2434591

NUT

SEAT - spring, flow control valve

2шт.

30

P1038251

SPRING

- flow control valve

2шт.

31

P3036999

SPECIAL RING

SNAP RING - guide

2шт.

32

P3337401

PLUG

- body, Includes: Ref. 33 - 36

1шт.

P3743374

VALVE POPPET

VALVE ASSEMBLY - circuit relief valve

4шт.

33

P5449659

SEAL PACKAGE

KIT - seal, circuit relief control valve

1шт.

34

P1038224

SPRING

- circuit relief valve

1шт.

35

P1038223

SPRING

- circuit relief valve

1шт.

36

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

37

P1030030

PLUG

VALVE ASSEMBLY - valve

2шт.

38

P1038263

SPRING

VALVE

1шт.

39

P4343366

VALVE POPPET

POPPET - valve

1шт.

40

P2930443

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

- valve

2шт.

41

P4043382

VALVE POPPET

VALVE ASSEMBLY - load sensing valve, Includes: Ref. 42

1шт.

42

P5949617

SEAL PACKAGE

SEAL KIT - valve

1шт.
