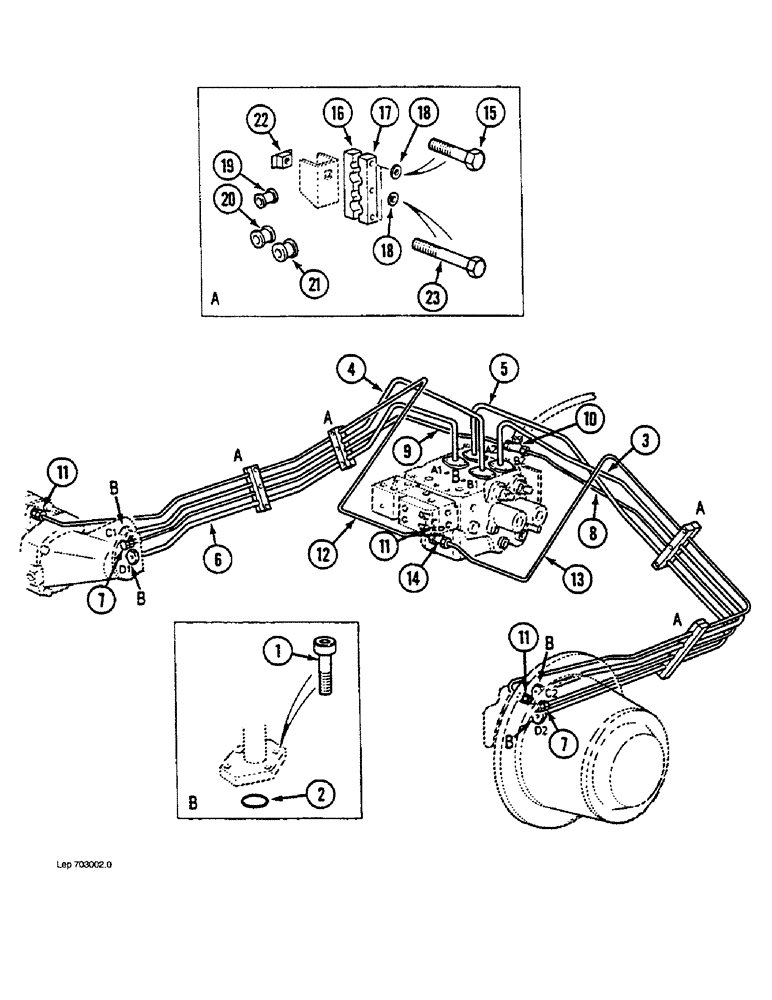

Запчасти Case 1088 (7-10) - TRACK DRIVE AND BRAKE HYDRAULIC LINES (07) - BRAKES

1

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

32шт.

2

P1130483

O-RING

- tube flange

8шт.

3

P7149169

PIPE

TUBE - drive control, to right-hand drive motor, lower port

1шт.

4

P7149164

PIPE

TUBE - drive control, to left-hand drive motor, upper port

1шт.

5

P7149171

PIPE

TUBE - drive control, to right-hand drive motor, upper port

1шт.

6

P7149173

PIPE

TUBE - drive control, to left-hand drive motor, lower port

1шт.

7

P3237583

UNION

ADAPTER - straight

2шт.

P1145268

SEAL

- adapter

1шт.

8

P7049107

PIPE

TUBE - leak return, from right-hand drive motor

1шт.

9

P7049106

PIPE

TUBE - leak return, from left-hand drive motor

1шт.

10

P937276

TEE

- return, leak return tubes

1шт.

11

P3237530

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

12

P7249189

PIPE

TUBE - brake release, from left-hand drive transmission

1шт.

13

P7249190

PIPE

TUBE - brake release, from right-hand drive transmission

1шт.

14

P937293

TEE

- brake release, Serial Range: tubes-valve

1шт.

15

P933883

SCREW

BOLT - tube clamp, 10 mm x 55 mm, full thread

8шт.

16

P4820317

SHIN

CLAMP - drive motor tubes, inner, Serial Range: 19801-XXXXX

4шт.

16

P4820317

SHIN

CLAMP - drive motor tubes, inner, Serial Range: 106901-XXXXX

4шт.

16

P5120384

SHIN

CLAMP - drive motor tubes, inner, Start Serial: XXXXX

4шт.

17

P4820318

SHIN

CLAMP - drive motor tubes, outer, Serial Range: 19801-XXXXX

4шт.

17

P4820318

SHIN

CLAMP - drive motor tubes, outer, Serial Range: 106901-XXXXX

4шт.

17

P5120385

SHIN

CLAMP - drive motor tubes, outer, Start Serial: XXXXX

4шт.

18

P4328796

WASHER

SPACER - bolt, 7 mm thick

12шт.

19

P1241416

BUSHING

INSULATOR - clamp, brake release tubes, Serial Range: 19801-XXXXX

4шт.

19

P1241416

BUSHING

INSULATOR - clamp, brake release tubes, Serial Range: 106901-XXXXX

4шт.

19

P1541465

BUSHING

INSULATOR - clamp, brake release tubes, Start Serial: XXXXX

4шт.

20

P1541466

BUSHING

INSULATOR - clamp, leak return tubes

4шт.

21

P741440

BUSHING

INSULATOR - clamp, drive control tubes

8шт.

22

P2434525

NUT

- cage type, 10 mm

4шт.

23

P1033069

SCREW

BOLT - hex, 10 mm x 80 mm, special

4шт.
