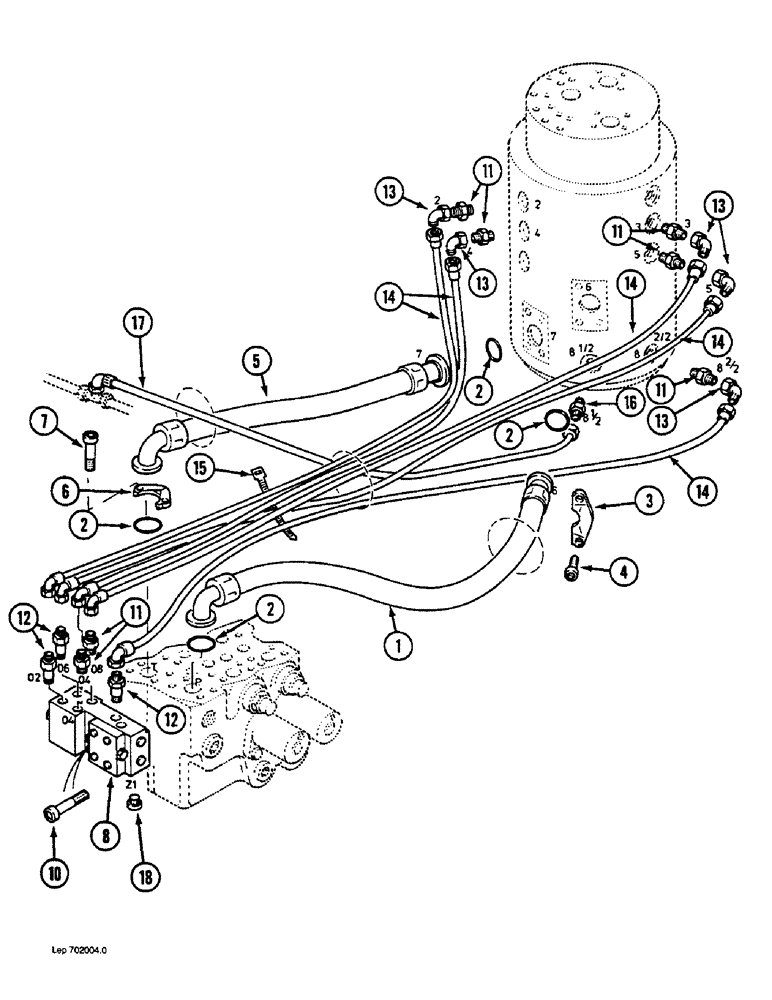

Запчасти Case 1088 (7-06) - TRACK DRIVE CONTROL CIRCUIT, PRESSURE AND RETURN LINES P.I.N. FROM 19801 AND AFTER (07) - BRAKES

1

P6631997

HOSE

- 39-3/8 inch long, pressure, to center block of drive control valve

1шт.

2

P1230493

O-RING

- hose flange

4шт.

3

P4024268

SHIN

SPLIT FLANGE - hose

4шт.

4

P32961

SCREW

BOLT - hex socket, 14 mm x 45 mm

8шт.

5

P6631996

HOSE

- 39-3/8 inch long, Serial Range: return-swivel

1шт.

6

P4024273

RETAINER

SPLIT FLANGE - hose

4шт.

7

P32943

SCREW

BOLT - hex socket, 12 mm x 35 mm

8шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - brake release, (See Figure 7-20)

1шт.

10

P32918

SCREW

BOLT - hex socket, 6 mm x 45 mm

2шт.

11

P3237530

UNION

ADAPTER - straight

7шт.

P7046042

SEAL

- adapter

1шт.

12

P3237581

UNION

ADAPTER - straight

3шт.

P7046042

SEAL

- adapter

1шт.

13

P1737018

ANGLE

ELBOW - 90 degree

5шт.

14

P5431942

HOSE

- 49-3/16 inch long, pilot, swivel to tee on brake release valve

5шт.

15

P51946

CLAMP

TIE STRAP - hose, 10-1/8 inch long

1шт.

16

P3237532

UNION

ADAPTER - straight

1шт.

P2230418

SEAL

O-RING - adapter

1шт.

17

P5431985

HOSE

- 31-1/2 inch long, leak return, (Replaces P6731948)

1шт.

18

P2537447

PLUG

- brake release valve

1шт.

P7046042

SEAL

- plug

1шт.
