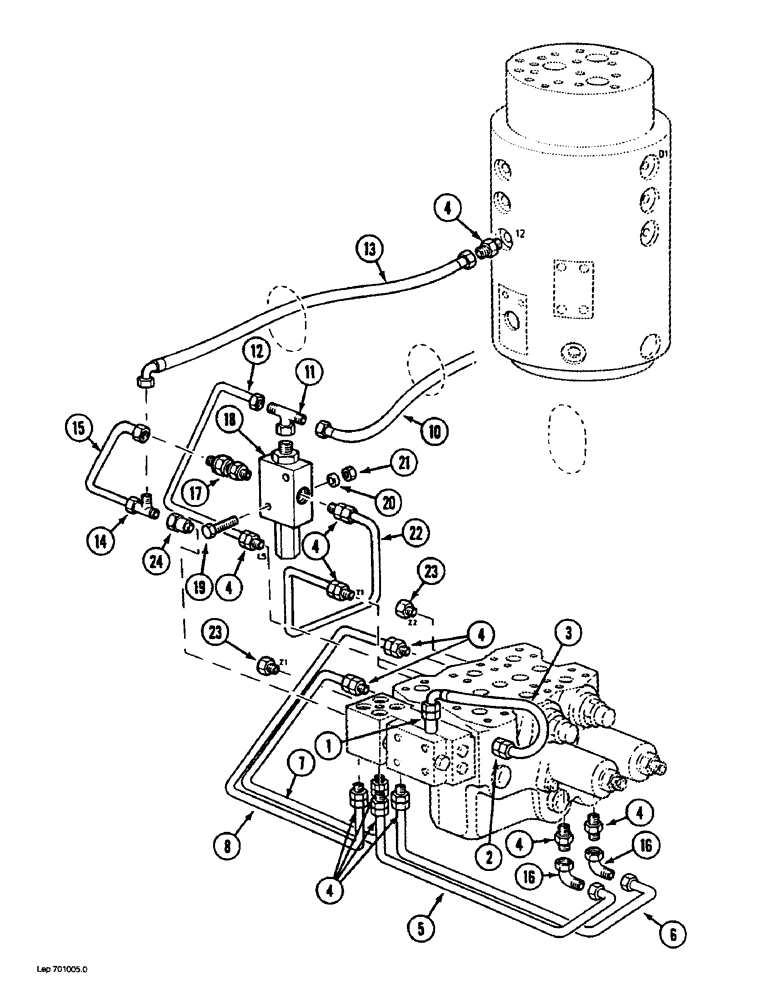

Запчасти Case 1088 (7-04) - TRACK DRIVE CONTROL CIRCUIT, P.I.N. FROM 106901 TO 106939 (07) - BRAKES

1

P4037580

UNION

ADAPTER - straight, long

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

2

P4037579

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

3

P5431936

HOSE

- 24-13/16 inch long, pressure from center block to brake release valve

1шт.

4

P3237530

UNION

ADAPTER - straight

12шт.

P7046042

SEAL

- adapter

1шт.

5

P6349076

PIPE

TUBE - pilot central brake release valve to right-hand spool of drive control valve

1шт.

6

P6349077

PIPE

TUBE - pilot control, brake release valve to right-hand spool of drive control valve

1шт.

7

P6249081

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

8

P6249080

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

10

REF

INSTRUCTION

HOSE - tee to leveler control valve, power sensing, (See page 7-12 for continuation)

1шт.

11

P937293

TEE

- street

1шт.

12

P8447667

PIPE

TUBE - tee to drive control valve, power sensing

1шт.

13

P5431942

HOSE

- 49-3/16 inch long, pilot swivel to tee on brake release valve

1шт.

14

P937295

TEE

- street, brake release valve

1шт.

15

P8647699

PIPE

TUBE - no return valve to brake release valve

1шт.

16

P1737018

ANGLE

ELBOW - 90 degree

2шт.

17

P4037567

VALVE POPPET

VALVE - no return valve

1шт.

P7046042

SEAL

- valve

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY - speed control limiter, (See Figure 7-18)

1шт.

19

P133808

SCREW

BOLT - hex, 6 mm x 45 mm

2шт.

20

P3528799

WASHER

SPACER - bolt, 4 mm thick

2шт.

21

P234513

SAFETY NUT

NUT - hex, 6 mm

2шт.

22

P7049140

PIPE

TUBE - speed control limiter to drive control valve

1шт.

23

P2537447

PLUG

- brake release valve, drive control valve

2шт.

P7046042

SEAL

- plug

1шт.

24

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.
