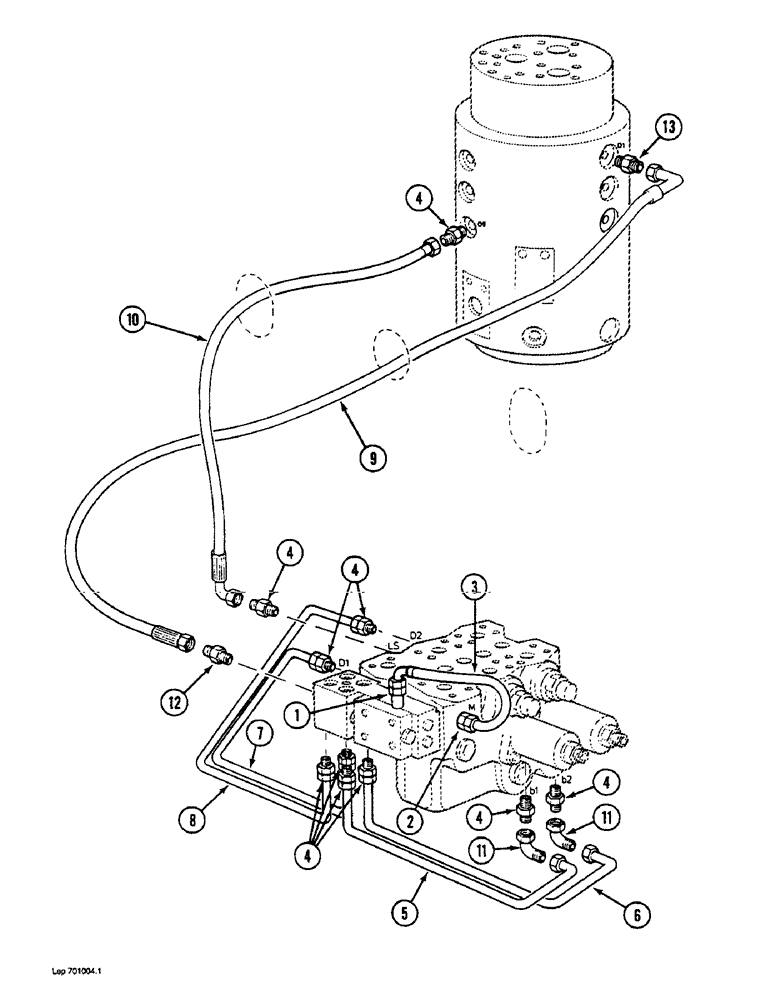

Запчасти Case 1088 (7-03A) - TRACK DRIVE CONTROL CIRCUIT, P.I.N. FROM 20242 AND AFTER (07) - BRAKES

1

P4037580

UNION

ADAPTER - straight, long

1шт.

P7046042

SEAL

- adapter, not shown

1шт.

2

P4037579

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

3

P5431936

HOSE

- 630 mm long, pressure from center block to brake release valve

1шт.

4

P3237530

UNION

ADAPTER - straight

10шт.

P7046042

SEAL

- adapter

1шт.

5

P6349076

PIPE

TUBE - pilot central brake release valve to right-hand spool of drive control valve

1шт.

6

P6349077

PIPE

TUBE - pilot control, brake release valve to right-hand spool of drive control valve

1шт.

7

P6249081

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

8

P6249080

PIPE

TUBE - pilot control, brake release valve to left-hand spool of drive control valve

1шт.

9

P5431942

HOSE

- 1250 mm long, pilot, swivel to tee on brake release valve

1шт.

10

P7931909

HOSE

- 1250 mm long, tee to swivel, power sensing, (Replaces P5431940)

1шт.

11

P1737018

ANGLE

ELBOW - 90 degree

2шт.

12

P3237581

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.

13

P4237525

UNION

ADAPTER - straight

1шт.

P7046042

SEAL

- adapter

1шт.
