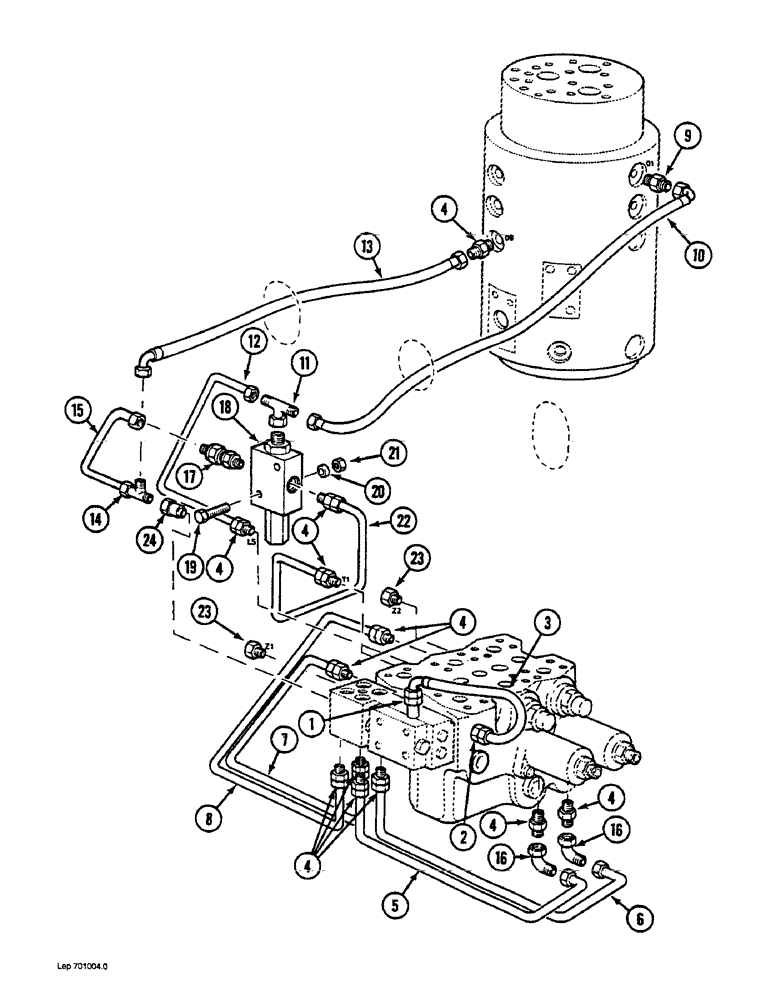

Запчасти Case 1088 (7-02) - TRACK DRIVE CONTROL CIRCUIT, P.I.N. FROM 19801 TO 20241 (07) - BRAKES
№
Артикул
Название
Примечание
Количество
1
P4037580
UNION
ADAPTER - straight, long
1шт.
P7046042
SEAL
- adapter, not shown
1шт.
2
P4037579
UNION
ADAPTER - straight
1шт.
P7046042
SEAL
- adapter
1шт.
3
P5431936
HOSE
- 24-13/16 inch long, pressure from center block to brake release valve
1шт.
4
P3237530
UNION
ADAPTER - straight
12шт.
P7046042
SEAL
- adapter
1шт.
5
P6349076
PIPE
TUBE - pilot central brake release valve to right-hand spool of drive control valve
1шт.
6
P6349077
PIPE
TUBE - pilot control, brake release valve to right-hand spool of drive control valve
1шт.
7
P6249081
PIPE
TUBE - pilot control, brake release valve to left-hand spool of drive control valve
1шт.
8
P6249080
PIPE
TUBE - pilot control, brake release valve to left-hand spool of drive control valve
1шт.
9
P3237530
UNION
ADAPTER - power sensing
1шт.
P7046042
SEAL
- adapter
1шт.
10
P5431940
HOSE
- 49-3/16 inch long, tee to swivel, power sensing, (Order P7931909)
1шт.
11
P937293
TEE
- street
1шт.
12
P8447667
PIPE
TUBE - tee to drive control valve, power sensing
1шт.
13
P5431984
HOSE
- 39-3/8 inch long, pilot, swivel to tee on brake release valve
1шт.
14
P937295
TEE
- street, brake release valve
1шт.
15
P8947664
PIPE
TUBE - no return valve to brake release valve, (Replaces P8647699)
1шт.
16
P1737018
ANGLE
ELBOW - 90 degree
2шт.
17
P4037567
VALVE POPPET
VALVE - no return valve
1шт.
P7046042
SEAL
- valve
1шт.
18
REF
INSTRUCTION
VALVE ASSEMBLY - speed control limiter, (See Figure 7-18)
1шт.
19
P133808
SCREW
BOLT - hex, 6 mm x 45 mm
2шт.
20
P3528799
WASHER
SPACER - bolt, 4 mm thick
2шт.
21
P234513
SAFETY NUT
NUT - hex, 6 mm
2шт.
22
P7049140
PIPE
TUBE - speed control limiter to drive control valve
1шт.
23
P2537447
PLUG
- brake release valve, drive control valve
2шт.
P7046042
SEAL
- plug
1шт.
24
P3237581
UNION
ADAPTER - straight
1шт.
P7046042
SEAL
- adapter
1шт.
Выбрано товаров: 31
