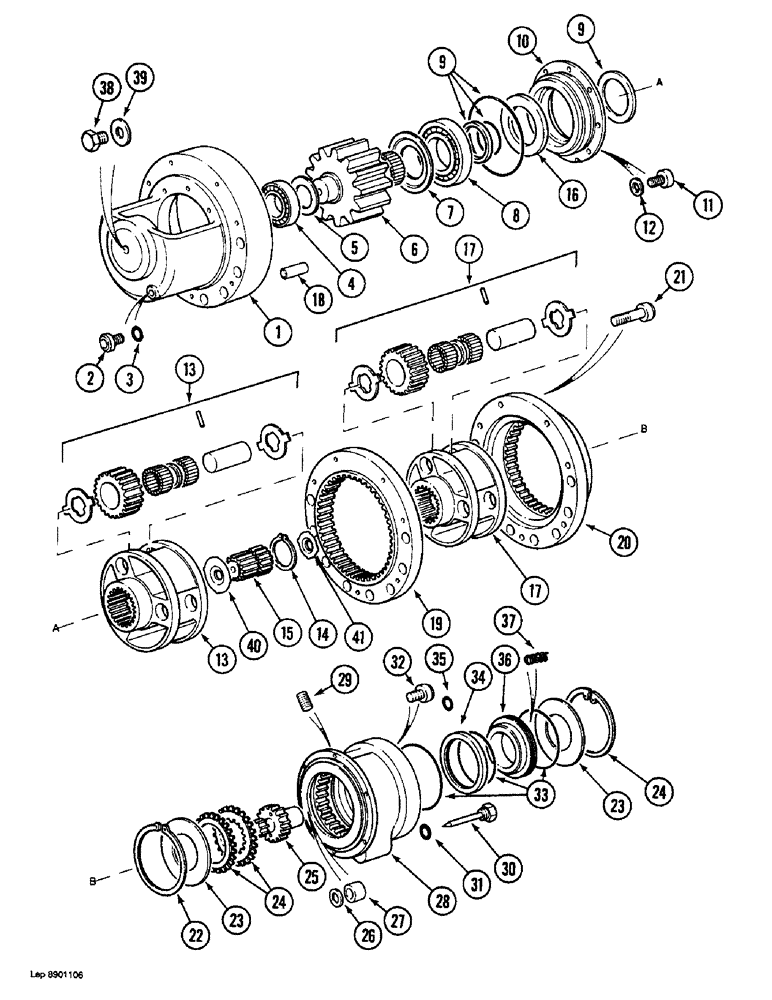

Запчасти Case 1088 (6-14) - SWING TRANSMISSION (06) - POWER TRAIN

P2648521

REDUCER

SWING TRANSMISSION ASSEMBLY - excavator, Includes: Ref. 1 - 41

1шт.

1

P5240319

HOUSING

- swing gear

1шт.

2

P1337431

PLUG

- gear housing

1шт.

3

P1245266

WASHER, SEALING

SEAL - plug

1шт.

4

P1139863

BEARING

BALL BEARING - swing gear shaft, lower

1шт.

5

P4241469

PROTECTOR

SEAL - lower bearing

1шт.

6

P4839307

PINION

SWING GEAR AND SHAFT - transmission

1шт.

7

P4241470

PROTECTOR

SEAL - upper bearing

1шт.

8

P539807

BEARING

BALL BEARING - swing gear shaft, upper

1шт.

9

P8846273

SPARE PART SET

KIT - seal repair, (Replaces P8646250 - kit)

1шт.

10

P150291

FLANGE

HOUSING - bearing

1шт.

11

P933890

SCREW

BOLT - hex, 10 mm x 30 mm

8шт.

12

P1946313

WASHER

- flat, 10 mm

8шт.

13

P5039302

PINION CARRIER

CARRIER ASSEMBLY - planetary, second stage, (Replaces P4839331 and P4839375)

1шт.

14

P936348

RING, SNAP

SNAP RING - pinion retaining

1шт.

15

P4839309

PINION

- gear

1шт.

16

P2745461

SHIM KIT

SHIM - bearing

1шт.

17

P4839332

PINION CARRIER

CARRIER ASSEMBLY - planetary, first stage

1шт.

18

P435747

SPLIT PIN/SAFETY PIN

PIN - housing

3шт.

19

P4839308

SLEWING RING

RING GEAR - carrier, second stage

1шт.

20

P4839310

SLEWING RING

RING GEAR - carrier, second stage

1шт.

21

P433814

SCREW

BOLT hex, socket, 10 mm x 60 mm

7шт.

Sub can be used, but ID dlr would like same style bolt P/N 864-12060, can be used

1шт.

22

P36262

RING, SNAP

SNAP RING - brake housing

2шт.

23

P1846383

WASHER

- brake housing

2шт.

24

P7946291

SPARE PART SET

KIT - disc, swing brake

1шт.

25

P4839311

PINION

- gear, swing brake

1шт.

26

P1946314

WASHER

SHIM - 2 mm thick

1шт.

27

P7946293

PLATE, THRUST

BUSHING - pinion

1шт.

28

P5140326

HOUSING

- brake

1шт.

29

P3237476

PLUG

- housing

1шт.

30

P3237475

PLUG

AND DIPSTICK - brake housing

1шт.

31

P1245267

WASHER, SEALING

SEAL - plug and dipstick

1шт.

32

P732909

SCREW

BOLT - hex socket, 8 mm x 25 mm, grade 10.9

6шт.

33

P7946292

SPARE PART SET

KIT - seal repair, brake housing

1шт.

34

P2728889

BUSHING

- brake housing

1шт.

35

P1230429

O-RING

- brake housing

2шт.

36

P3628807

PISTON

- brake

1шт.

37

P1038261

SPRING

- brake piston

1шт.

38

P433813

SCREW

BOLT - hex, 8 mm x 10 mm

1шт.

39

P1245275

WASHER, SEALING

SEAL - bolt

1шт.

40

P1946350

STOP

THRUST WASHER - pinion gear, large

1шт.

41

P1846382

STOP

THRUST WASHER - pinion gear, small

1шт.
