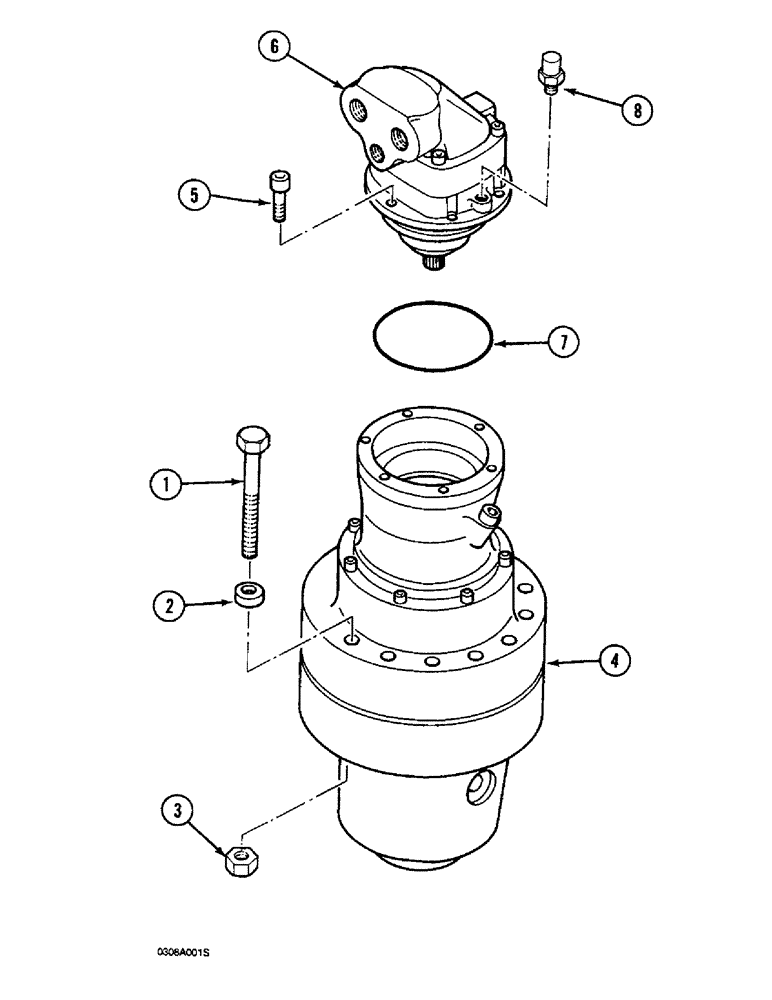

Запчасти Case 1088 (6-12) - HYDRAULIC MOTOR TO SWING TRANSMISSIONS (06) - POWER TRAIN

1

P1633892

SCREW

BOLT - hex socket, 20 mm x 180 mm, grade 10.9

8шт.

2

P4328747

WASHER

SPACER - bolt, 14 mm thick

8шт.

3

P134106

NUT

- hex, 20 mm

8шт.

4

REF

INSTRUCTION

SWING TRANSMISSION ASSEMBLY - excavator, (See Figure 6-14)

1шт.

5

P532988

SCREW

BOLT - hex socket, 10 mm x 25 mm, grade 10.9

6шт.

6

REF

INSTRUCTION

HYDRAULIC MOTOR ASSEMBLY - swing, (See Figure 8C-24)

1шт.

7

P230459

O-RING,5.7mm Thk x 139.3mm ID, 70 Duro

- swing, Serial Range: motor-transmission

1шт.

8

P4043386

VALVE POPPET

BREATHER - swing motor

1шт.

P7046042

SEAL

- adapter

1шт.
