(158) - UPPERSTRUCTURE SWING LOCKING CONTROL (0.80 M)

Запчасти Case 1088 (158) - UPPERSTRUCTURE SWING LOCKING CONTROL (0.80 M) (90) - PLATFORM, CAB, BODYWORK AND DECALS

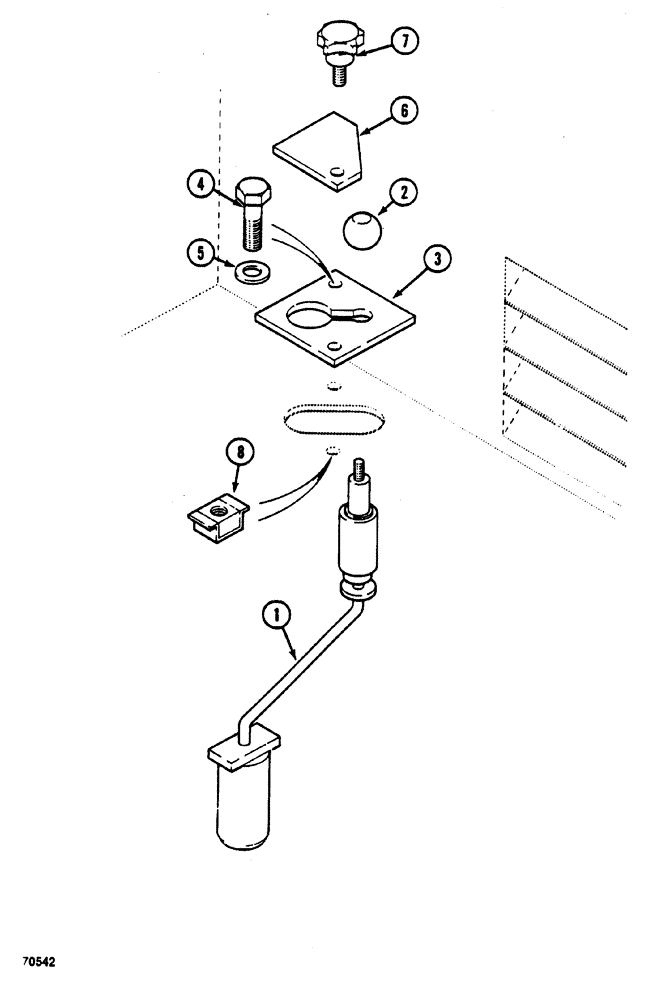

Схема запчастей Case 1088 - (158) - UPPERSTRUCTURE SWING LOCKING CONTROL (0.80 M) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
5
1
4
2
7
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

E5242785

LARGE PIN

SPARE PART

1шт.

2

KNOB see standard catalog

1шт.

3

GRILL see standard catalog

1шт.

4

SCREW, M6 x 25 x 25, see standard catalog

1шт.

5

WASHER 6.25 x 4 x 15, see standard catalog

1шт.

6

STOP see standard catalog

1шт.

7

BUTTON push, see standard catalog

1шт.

8

NUT, M6, see standard catalog

2шт.
