(154) - RAISED CAB (0.80 M)

Запчасти Case 1088 (154) - RAISED CAB (0.80 M) (90) - PLATFORM, CAB, BODYWORK AND DECALS

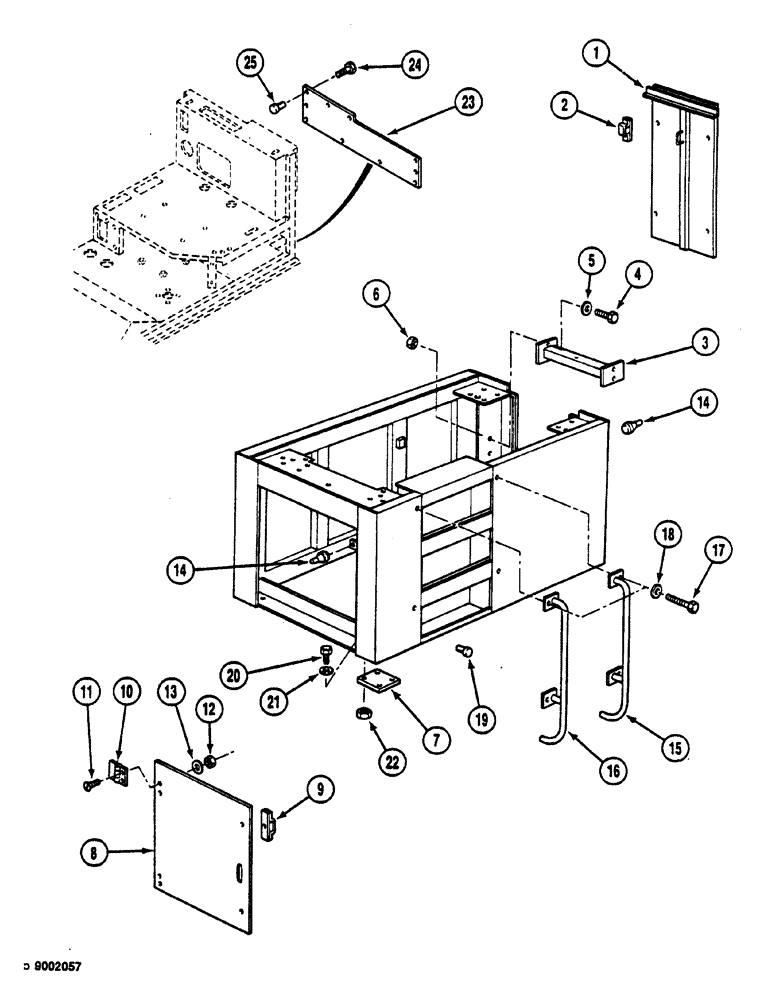

Схема запчастей Case 1088 - (154) - RAISED CAB (0.80 M) (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
4
2
18
5
20
13
22
14
3
11
23
15
1
19
25
16
9
10
12
24
21
6
14
7
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

N8643895

RISER

SPARE PART FRAME, Consists of Refs. 1-22

1шт.

1

L8643893

PANEL

SPARE PART Consists of: Ref. 2

1шт.

2

M51922

LATCH

CATCH

4шт.

3

D5628287

BEAM ASSY.

MEMBER

2шт.

4

M933811

BOLT

M12 x 50 x 50

8шт.

5

X35004

WASHER

M12 N

8шт.

6

T834549

SAFETY NUT

M12

8шт.

7

F3923345

LARGE PLATE

PLATE, LARGE SPACER

4шт.

8

M8643894

DOOR

SPARE PART Consists of: Refs. 9 and 10

1шт.

9

M51922

LATCH

CATCH

2шт.

10

A736667

HINGE

2шт.

11

T32470

SCREW

M10 x 30

4шт.

12

G34598

SAFETY NUT

M10

4шт.

13

W3528795

WASHER

10.25 x 7 x 25

4шт.

14

M41434

STOP

6шт.

15

K4747922

HANDLE

SPARE PART RAMP right

1шт.

16

K4747922

HANDLE

SPARE PART RAMP left

1шт.

17

F32688

SCREW

M14 x 50 x 50

4шт.

18

Q4328798

WASHER

14.5 x 10 x 28

4шт.

19

B35421

RIVET

4шт.

20

120074

BOLT,Hex, M10 x 90, 8.8

16шт.

21

W3528795

WASHER

10.25 x 7 x 25

16шт.

22

G34598

SAFETY NUT

M10

16шт.

23

U5123406

LARGE PLATE

PLATE, LARGE rear

1шт.

24

W1332939

SCREW

M4 x 14

10шт.

25

B35444

RIVET

10шт.
