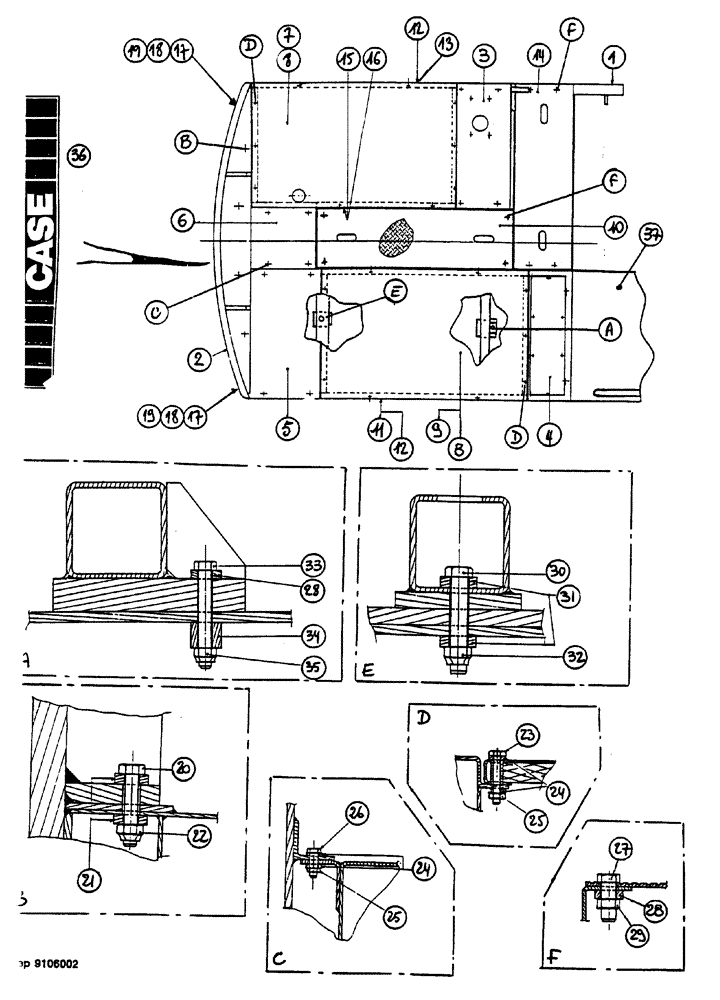

Запчасти Case 1088 (152) - COWLING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

Z455629

CHASSIS

1шт.

2

V603838

BALANCER

SPARE PART COUNTERWEIGHT

1шт.

3

BOX suction, see Fig. 146

1шт.

4

BOX suction, see Fig. 150

1шт.

5

TANK hydraulic fluid, see Fig. 96

1шт.

6

ADAPTATION cooler, see Fig. 88

1шт.

7

P8643896

PANEL

SPARE PART

1шт.

8

W4641420

PANEL

SPARE PART LINING

4шт.

9

Q8643897

PANEL

SPARE PART

1шт.

10

S1155605

FLOOR

SPARE PART

1шт.

11

T9043801

PANEL

SPARE PART

2шт.

12

X4641421

PANEL

SPARE PART LINING

6шт.

13

R8643898

PANEL

SPARE PART

1шт.

14

T1155606

FLOOR

SPARE PART

1шт.

15

S8643899

PANEL

SPARE PART

1шт.

16

Z4641422

PANEL

SPARE PART LINING

2шт.

17

Z841753

REFLECTOR

2шт.

18

S35413

RIVET

2шт.

19

P34605

WASHER

M5 N

2шт.

20

H133890

SCREW

M22 x 110

4шт.

21

E4328719

WASHER

22 x 50 x 15

8шт.

22

F1634546

NUT

SPARE PART safety, M22

4шт.

23

Z1133853

SCREW

M10 x 75 10.9

12шт.

24

W3528795

WASHER

L20 N

32шт.

25

86500689

NUT,M10 x 1.5, Cl 10

16шт.

26

V33093

YOKE

M10 x 40 10.9

4шт.

27

W1633802

SCREW

M20 x 60 10.9

20шт.

28

X3528796

WASHER

L20 N

8шт.

29

M134124

NUT

M20

16шт.

30

K1133817

SCREW

M24 x 150 10.9

2шт.

31

F4328720

WASHER

L24 N

4шт.

32

X834576

SAFETY NUT

M24

2шт.

33

X1633872

SCREW

M20 x 150 10.9

2шт.

34

W4328735

WASHER

21 x 40 x 45

2шт.

35

X2434502

SAFETY NUT

M20

2шт.

36

F582158

ADHESIVE

1шт.

37

CABINET electrical, see Fig. 66

1шт.
