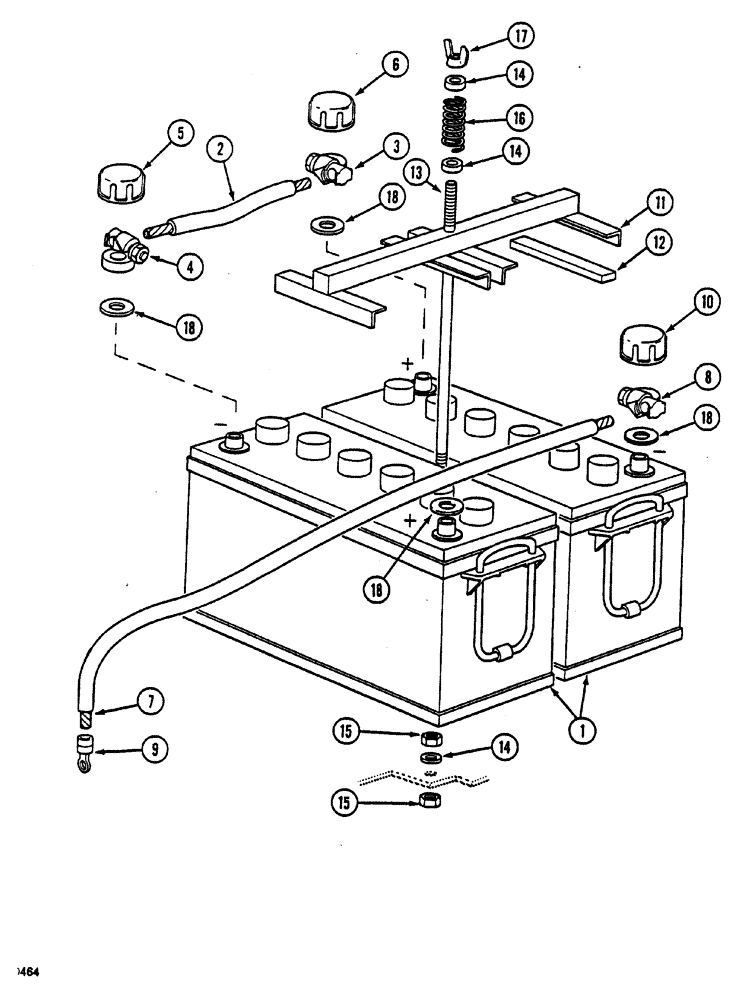

Запчасти Case 1088 (084) - BATTERIES (55) - ELECTRICAL SYSTEMS

1

V1241858

BATTERY, DRY

BATTERY DRY cell

2шт.

L147210

CABLE

Consists of: Refs. 2-6

1шт.

2

CABLE order J104520, length: 350 mm

1шт.

3

NLS

NO LONGER SERVICED

CLAMP +

1шт.

4

C40919

TERMINAL CONNECTOR

CLAMP -

1шт.

5

T2340451

PROTECTION CAP

black

1шт.

6

U2340452

PROTECTION CAP

red

1шт.

7

CABLE order J104520, length: 4000 mm

1шт.

8

C40919

TERMINAL CONNECTOR

CLAMP -

1шт.

9

T40934

TERMINAL CONNECTOR

CLAMP

1шт.

10

T2340451

PROTECTION CAP

black

1шт.

11

R5328264

SHIN

BRACKET, Consists of: Ref. 12

1шт.

12

SEAL order B403145, length: 150 mm

4шт.

13

Z2527722

TRUSS ROD

BAR tie

1шт.

14

N4328796

WASHER

10.25 x 7 x 20

3шт.

15

100016

NUT,M10 x 1.5, Cl 8

2шт.

16

J38165

COMPRESSION SPRING

1шт.

17

C34410

WING NUT

M10

1шт.

18

H2340487

HOLE PLUG BUTTON

4шт.
