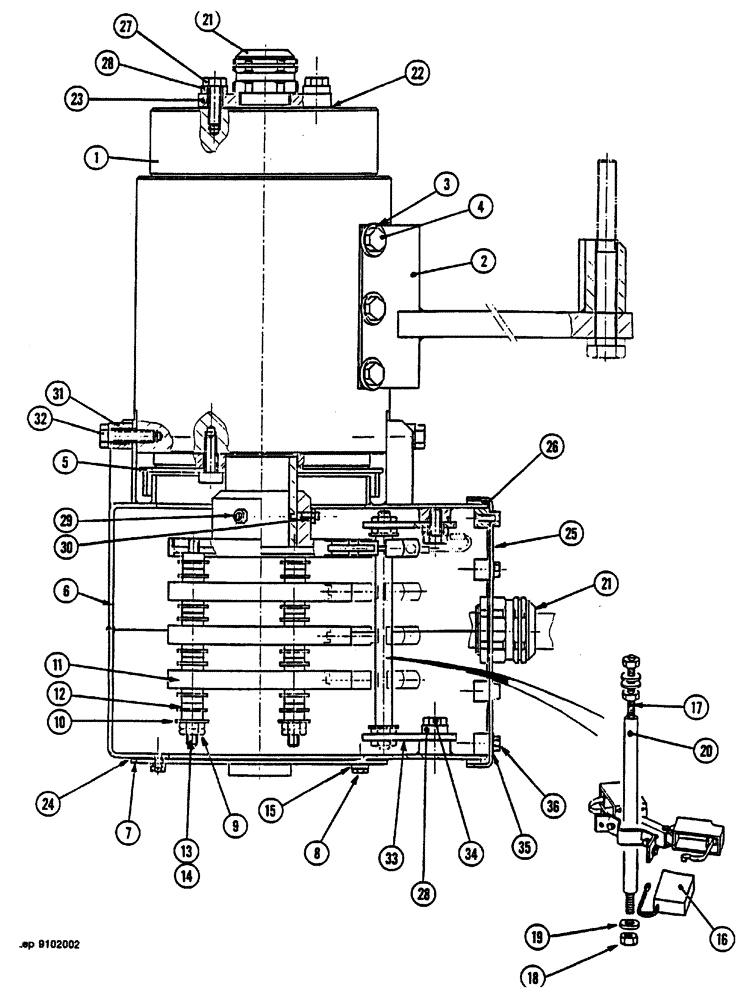

Запчасти Case 1088 (080) - ELECTRICAL TURNING JOINT ADAPTATION (55) - ELECTRICAL SYSTEMS

1

JOINT turning, see Fig. 128

1шт.

2

U455625

SUPPORT

SPARE PART

1шт.

3

S4328731

WASHER

12.5 x 24 x 30

6шт.

4

V933819

BOLT,Hex, M12 x 55, 8.8, Full Thd

6шт.

5

V7628245

SUPPORT

SPARE PART

1шт.

6

Q5240357

HOUSING

SPARE PART

1шт.

7

U7628244

COVER

SPARE PART PLATE

1шт.

8

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

6шт.

N3042130

MANIFOLD

SPARE PART COLLECTOR, Consists of: Refs. 9-14

1шт.

9

N34213

NUT

safety, M12

6шт.

10

X35004

WASHER

M12

3шт.

11

A4046298

BUSHING

3шт.

12

H3841467

SPACER

2шт.

13

ROD order N2404, length: 210 mm

3шт.

14

TUBE order A2031843, length: 167 mm

3шт.

15

B3528799

WASHER

6.25 x 4 x 15

6шт.

V2141227

DOOR

SPARE PART HOLDER brush, Consists of: Refs. 16-20

1шт.

16

L841258

CARBON

BRUSH

8шт.

17

ROD order N2404, length: 230 mm

3шт.

18

N34213

NUT

4шт.

19

X34613

WASHER

2шт.

20

TUBE order A2031843, length: 183 mm

1шт.

21

T4441432

GLAND

packing

2шт.

22

N9346085

GASKET

SPARE PART SEAL rubber

1шт.

23

J5124132

SHIN

SPARE PART BRACKET

1шт.

24

M9346084

GASKET

SPARE PART SEAL rubber

1шт.

25

W7628246

COVER

SPARE PART PLATE

1шт.

26

A403144

GASKET

SEAL

4шт.

27

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

2шт.

28

P4328797

WASHER

12.5 x 24 x 30

4шт.

29

J233044

SCREW

M8 x 30

3шт.

30

L34211

NUT,M8

Safety

3шт.

31

Q4528714

WASHER

12.5 x 24 x 25

4шт.

32

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

33

U22880

PLATE

2шт.

34

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

2шт.

35

H146057

COMPOSITE SEAL

8шт.

36

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

8шт.
