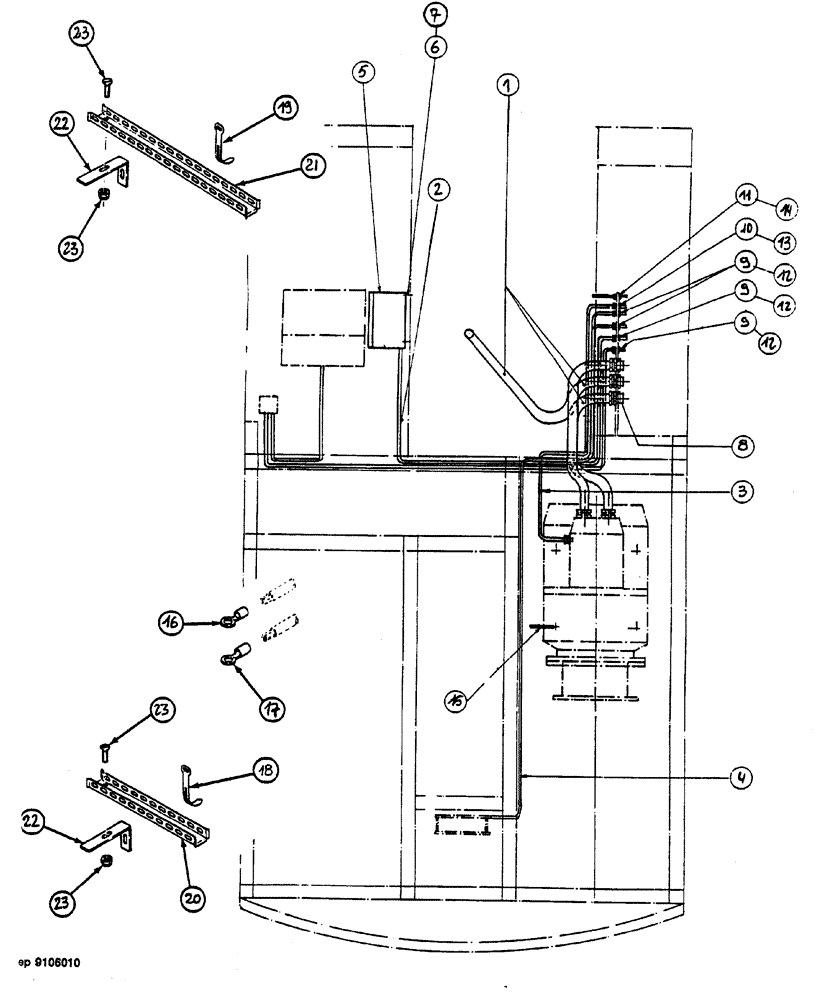

Запчасти Case 1088 (070) - ELECTRICAL CIRCUIT (55) - ELECTRICAL SYSTEMS

1

CABLE order X104579, length: 15000 mm

1шт.

2

CABLE order D104515, length: 5000 mm

1шт.

3

CABLE order M4565, length 2500 mm

1шт.

4

CABLE order N4566, length 4000 mm

2шт.

5

N1941856

CHARGER

1шт.

6

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

4шт.

7

A134596

SAFETY NUT

M8

4шт.

8

T4441432

GLAND

packing

3шт.

9

F141432

GLAND

packing

4шт.

10

E141431

GLAND

packing

1шт.

11

H141434

GLAND

packing

1шт.

12

A141450

NUT

GLAND packing

4шт.

13

N141439

NUT

GLAND packing

1шт.

14

C141452

NUT

GLAND packing

1шт.

15

L41824

NEG BATTERY CABLE

STRIP

1шт.

16

M140932

SPADE TERMINAL

CLAMP

14шт.

17

N140933

SPADE TERMINAL

CLAMP

16шт.

18

N51946

CLAMP

COLLAR 258 mm

50шт.

19

D136922

BLISTER

COLLAR 351 mm

50шт.

20

P1526799

CHUTE (DOWNWARD)

3шт.

21

H1327084

CHUTE (DOWNWARD)

1шт.

22

U3825608

SUPPORT

20шт.

23

F33102

BOLT

40шт.
