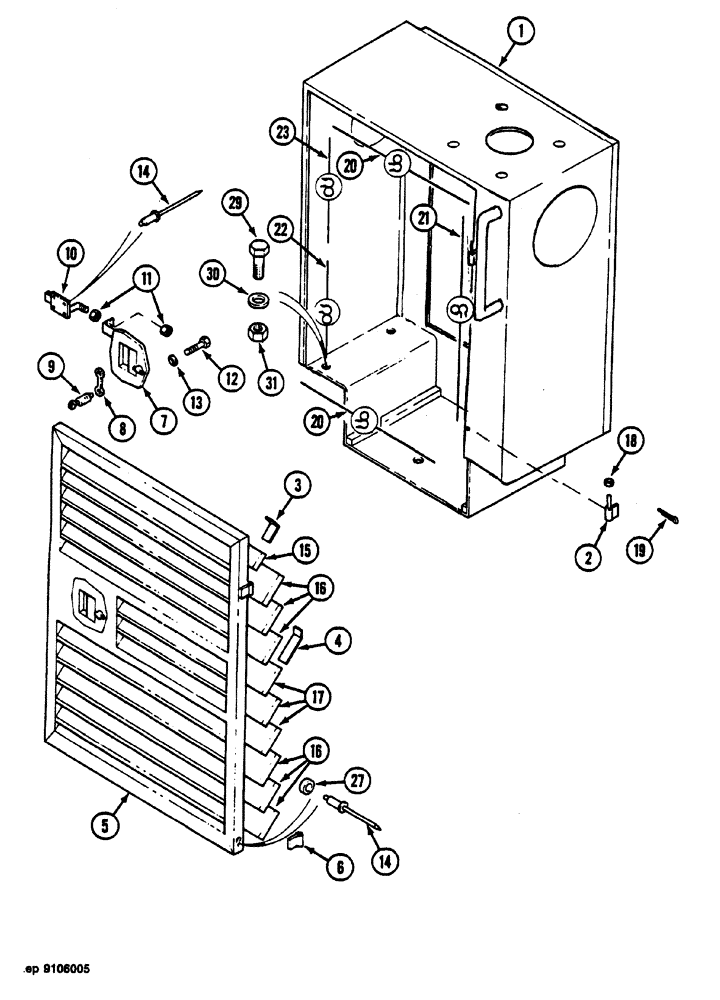

Запчасти Case 1088 (146) - SUCTION BOX (35) - HYDRAULIC SYSTEMS

1

R1155604

CHASSIS

SPARE PART CABINET electrical, Consists of: Ref. 2

1шт.

2

E36666

BOLT

2шт.

3

K1524518

PROTECTION PLATE

PLATE

4шт.

4

L1524519

PROTECTION PLATE

PLATE

33шт.

5

B8443853

DOOR

Consists of: Ref. 6

1шт.

6

F36667

FENDER

WING

2шт.

M852092

LOCK ASSY

Consists of: Refs. 7-10

1шт.

7

R852096

HANDLE

1шт.

8

V2340499

DOOR COVER

1шт.

9

H152083

LOCK, CYLINDER

LOCK-CYLINDER

1шт.

A1352009

SET OF 2 KEYS

1шт.

10

C1352011

END FITTING

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

2шт.

12

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

13

B3528799

WASHER

6.25 x 4 x 15

4шт.

14

S35413

RIVET

5шт.

15

S4441408

LARGE PLATE

PLATE, LARGE INSULATION

1шт.

16

Q4441406

LARGE PLATE

PLATE, LARGE INSULATION

6шт.

17

R4441407

LARGE PLATE

PLATE, LARGE INSULATION

3шт.

18

R34607

WASHER

M6 U

1шт.

19

X35510

SPLIT PIN

2шт.

20

PROFILE order X1303155, length: 700 mm

2шт.

21

PROFILE order X1303155, length: 758 mm

1шт.

22

PROFILE order X1303155, length: 363 mm

1шт.

23

PROFILE order X1303155, length: 395 mm

1шт.

24

G3036926

BASE

SUPPORT

3шт.

25

V336923

CLAMP

COLLAR 117 mm

3шт.

26

K3441407

GROMMET

GUIDE

2шт.

27

X41467

STOP

1шт.

29

X1633895

SCREW

M20 x 70 10.9

4шт.

30

X3528796

WASHER

L20 N

8шт.

31

M134124

NUT

M20

4шт.
