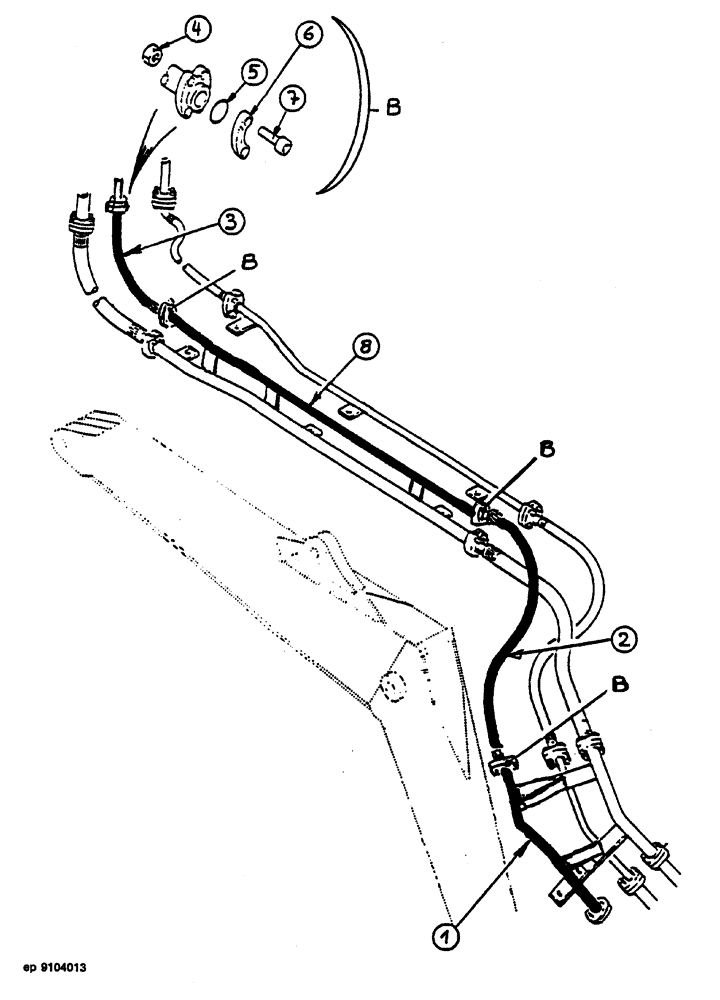

Запчасти Case 1088 (138) - HYDRAULIC CIRCUIT ON BOOM (5.40 M) (35) - HYDRAULIC SYSTEMS

1

V4050181

PIPE

SPARE PART LINE

1шт.

2

Z5931952

HOSE,18.6mm ID x 1000mm L

1000 mm

1шт.

3

W5431999

HOSE

1600 mm

1шт.

4

86500689

NUT,M10 x 1.5, Cl 10

16шт.

5

L1130483

O-RING

4шт.

6

C4024266

CLAMP

half

8шт.

7

H732994

SCREW,Hex Soc Hd, M10 x 50, 10.9

16шт.

8

PIPE

1шт.
