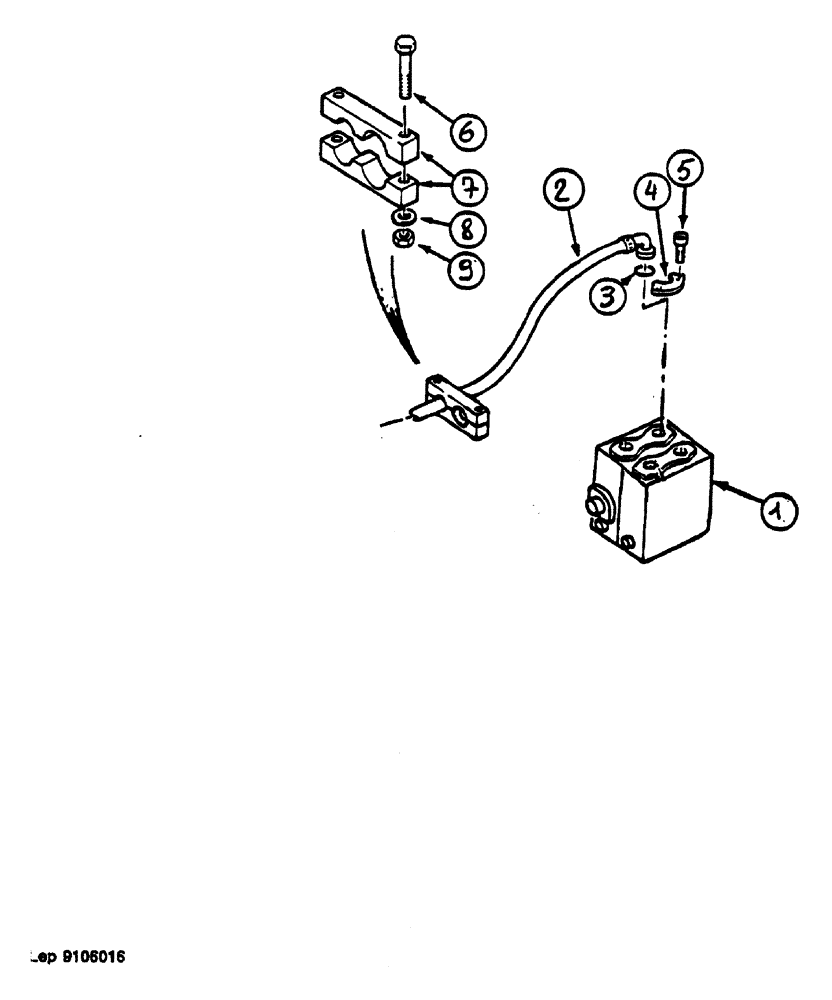

Запчасти Case 1088 (136) - SHEARS HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

BLOCK selector, see Fig. 142

1шт.

2

T5931901

HOSE

2000 mm

1шт.

3

L1130483

O-RING

1шт.

4

C4024266

CLAMP

half

2шт.

5

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

4шт.

6

120074

BOLT,Hex, M10 x 90, 8.8

2шт.

7

P4820330

SHIN

BRACKET

2шт.

8

W3528795

WASHER

10.25 x 7 x 25

4шт.

9

G34598

SAFETY NUT

M10

2шт.
