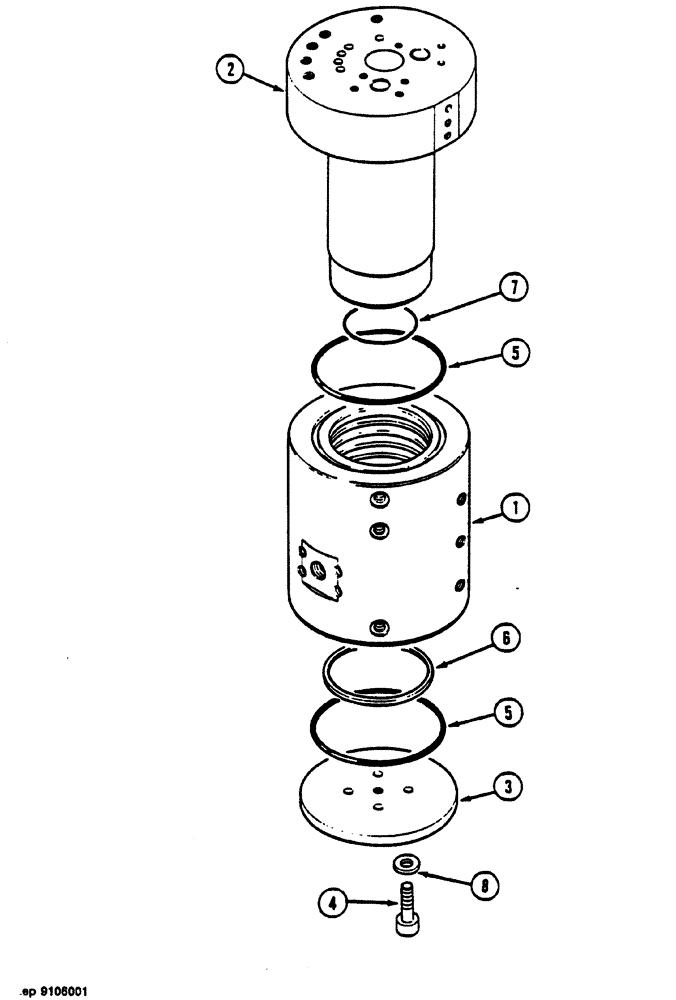

Запчасти Case 1088 (128) - TURNING JOINT (35) - HYDRAULIC SYSTEMS

N39043

JOINT TURNING

SPARE PART Consists of: Refs. 1-8

1шт.

1

BUSHING order N39043

1шт.

2

PIVOT order N39043

1шт.

3

U650205

LARGE PLATE

SPARE PART

1шт.

4

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

M10 x 30 x 30

3шт.

5

L30370

O-RING

2шт.

6

D246034

COMPOSITE SEAL

1шт.

7

F630412

O-RING,0.103" Thk x 4.737" ID, -158, Cl 6, 90 Duro

1шт.

8

P4328797

WASHER

12.5 x 8 x 25

3шт.
