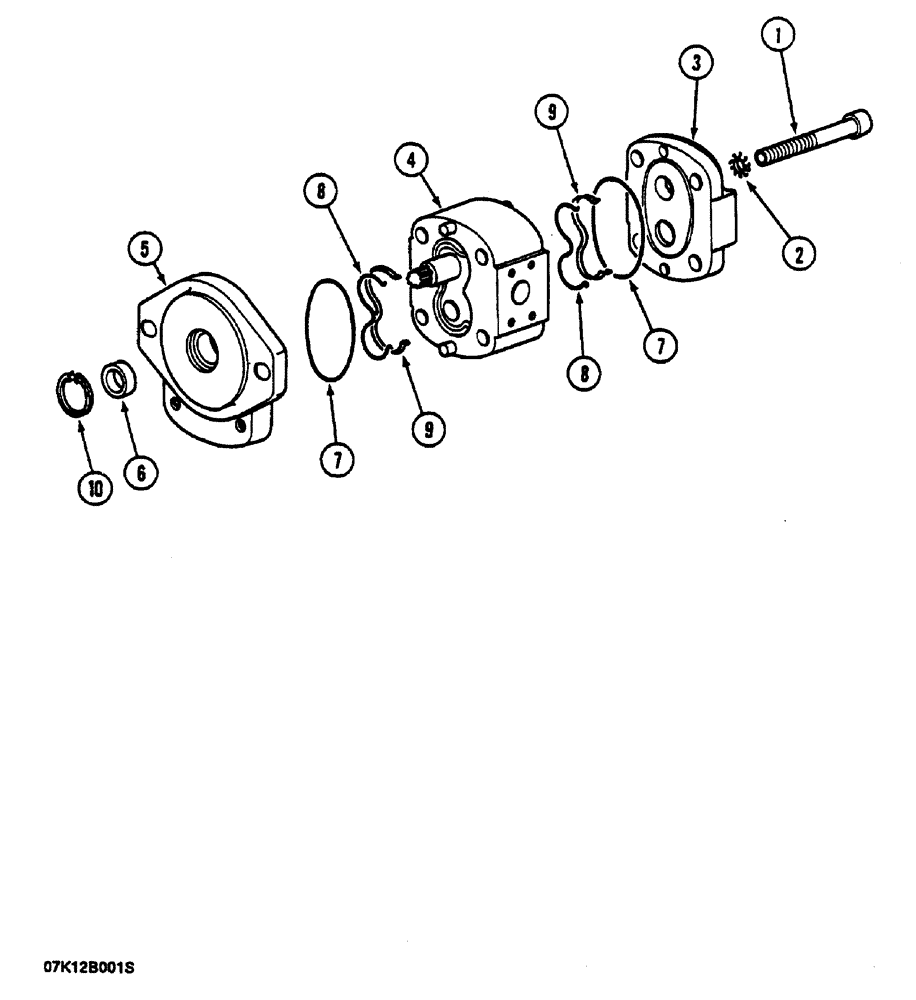

Запчасти Case 1088 (124) - LOW PRESSURE HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

P4543571

PUMP, HYDRAULIC

Consists of: Refs. 1-10

1шт.

1

SCREW order P4543571

2шт.

2

WASHER order P4543571

2шт.

3

PLATE order P4543571

1шт.

4

BODY order P4543571

1шт.

5

PLATE order P4543571

1шт.

6

G151415

SEAL,18mm ID x 30mm OD x 6.5mm Thk

RING

1шт.

N5949652

SEAL PACKAGE

SET of, Consists of: Refs. 7, 8 and 9

1шт.

7

O-RING order N5249652

2шт.

8

SEAL order N5249652

2шт.

9

SEAL order N5249652

2шт.

10

P36215

RING, SNAP

RING SNAP locking

1шт.
