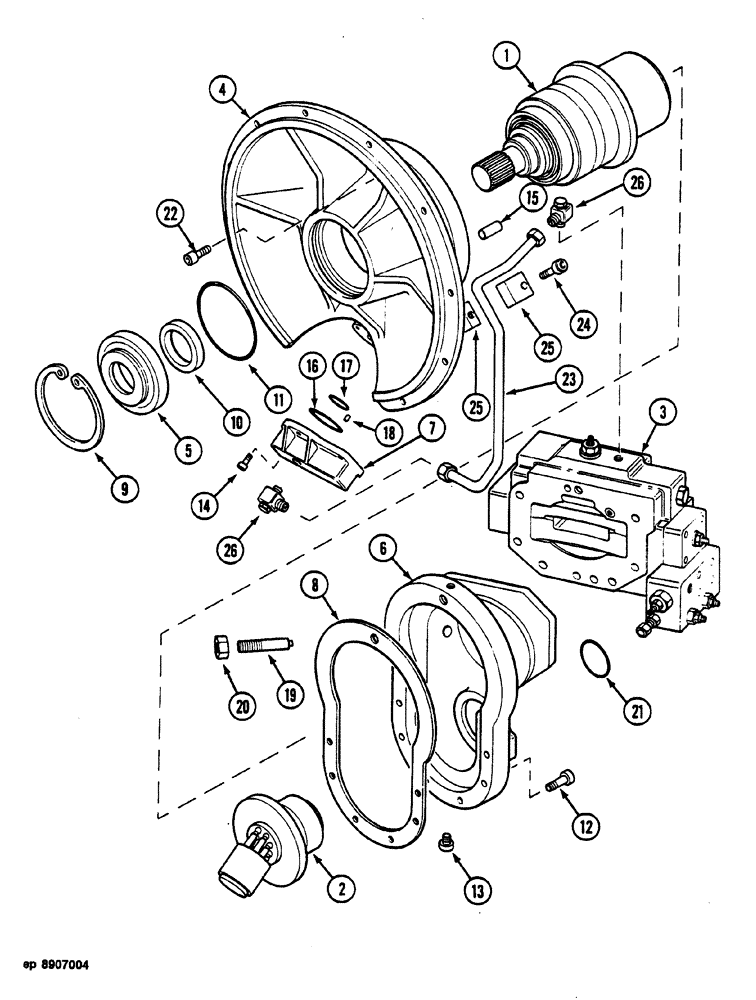

Запчасти Case 1088 (112) - HIGH PRESSURE HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

1

ROTOR see Fig. 114

1шт.

2

ROTOR see Fig. 116

1шт.

3

REGULATOR see Fig. 118

1шт.

4

W5240363

HOUSING

1шт.

5

T2728990

HOUSING

BUSHING

1шт.

6

W5240340

HOUSING

1шт.

7

X5240341

HEAD (CYLINDER)

valve

1шт.

8

R9346065

GASKET

SEAL

1шт.

9

N36260

RING, SNAP

RING SNAP locking

1шт.

10

U8846071

GASKET

SEAL replace V8846072

1шт.

11

Q2930490

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

12

W1232958

BOLT,M8 x 45mm, Cl 10.9

Replace W1232958

6шт.

13

K3337447

PLUG

2шт.

14

W32910

SCREW,Hex Skt Hd, M6 x 16mm

6шт.

15

Q36055

PIN

2шт.

16

J2930484

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

17

N2930488

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

18

J1136024

SPLIT PIN/SAFETY PIN

1шт.

19

P0032890A

SCREW

1шт.

20

V1782174

NUT

M12

1шт.

21

Z2930452

O-RING,0.07" Thk x 3.239" ID, -42, Cl 5, 75 Duro

1шт.

22

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

6шт.

D4050188

PIPE

fitted, Consists of: Refs. 23-26

1шт.

23

PIPE order D4050188

1шт.

24

86531615

HEX SOC SCREW,M6 x 20mm, Cl 8.8

2шт.

25

Z5120374

SHIN

BRACKET

2шт.

26

Q4837512

FITTING

CONNECTION

2шт.
