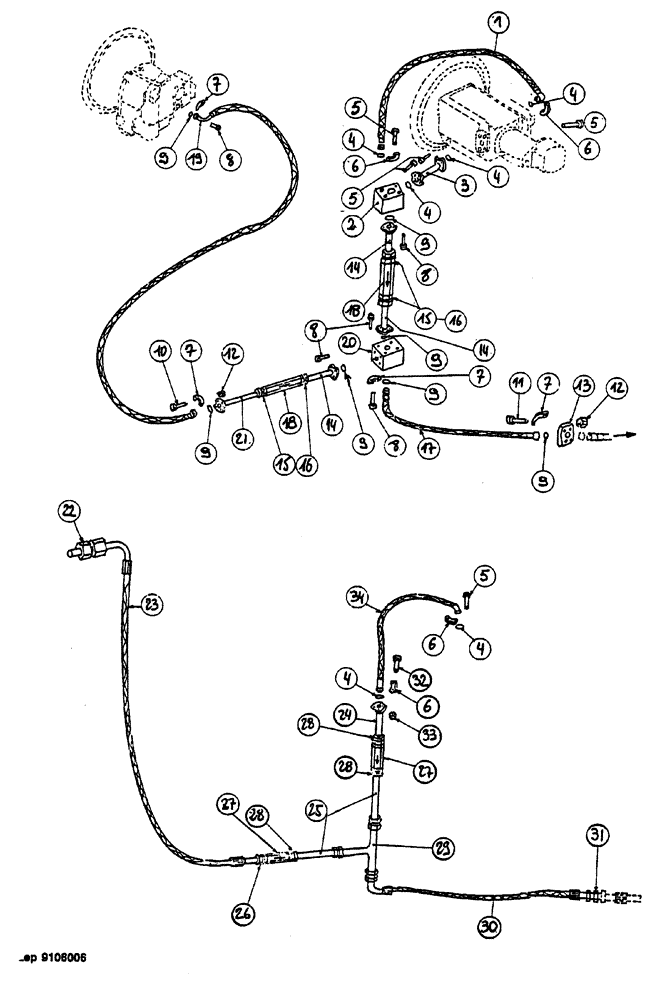

Запчасти Case 1088 (104) - HYDRAULIC CIRCUIT (35) - HYDRAULIC SYSTEMS

1

R5931991

HOSE

630 mm

1шт.

2

V1237258

TEE

SPARE PART PIECE

1шт.

3

Q4637642

PIPE

100 mm

1шт.

4

L1130483

O-RING

6шт.

5

14420331

HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd

20шт.

6

C4024266

CLAMP

half

8шт.

7

D4024267

SHIN

CLAMP half

8шт.

8

J532918

SCREW,Hex Skt, M12 x 40mm, Cl 10.9

20шт.

9

D330421

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

7шт.

10

W632934

SCREW,Hex Skt Hd, M12 x 65mm, Cl 10.9

M12 x 65 10.9

4шт.

11

Z1232983

SCREW

M12 x 75 10.9

4шт.

12

337475

NUT,M12, Cl 10

8шт.

13

G2237009

SHIN

SPARE PART BRACKET

1шт.

14

R7647170

PIPE

SPARE PART 100 mm

3шт.

15

G3037524

UNION

CONNECTION

3шт.

16

H1630431

O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro

4шт.

17

H6631988

HOSE

1800 mm

1шт.

18

P2043310

BLOCK ASSY.

2шт.

19

K5931916

HOSE,25mm ID x 1800mm L

1800 mm

1шт.

20

L937283

TEE

PIECE

1шт.

21

Q7647169

PIPE

SPARE PART 100 mm

1шт.

22

A3237572

UNION

CONNECTION

1шт.

G1145268

GASKET

SEAL

1шт.

23

F3731939

HOSE

1600 mm

1шт.

24

S7647171

PIPE

SPARE PART 80 mm

1шт.

25

T7647172

PIPE

SPARE PART 80 mm

1шт.

26

G3037501

UNION

CONNECTION

1шт.

V5746063

GASKET

SEAL

1шт.

27

M2043308

BLOCK ASSY.

SPARE PART

2шт.

28

T3237543

UNION

CONNECTION

3шт.

G1145268

GASKET

SEAL

1шт.

29

E937277

TEE

PIECE

1шт.

30

N5431968

HOSE

1600 mm

1шт.

31

M3237537

UNION

CONNECTION

1шт.

32

L632924

SCREW

M10 x 50 10.9

4шт.

33

100016

NUT,M10 x 1.5, Cl 8

4шт.

34

U5431997

HOSE

200 mm

1шт.
