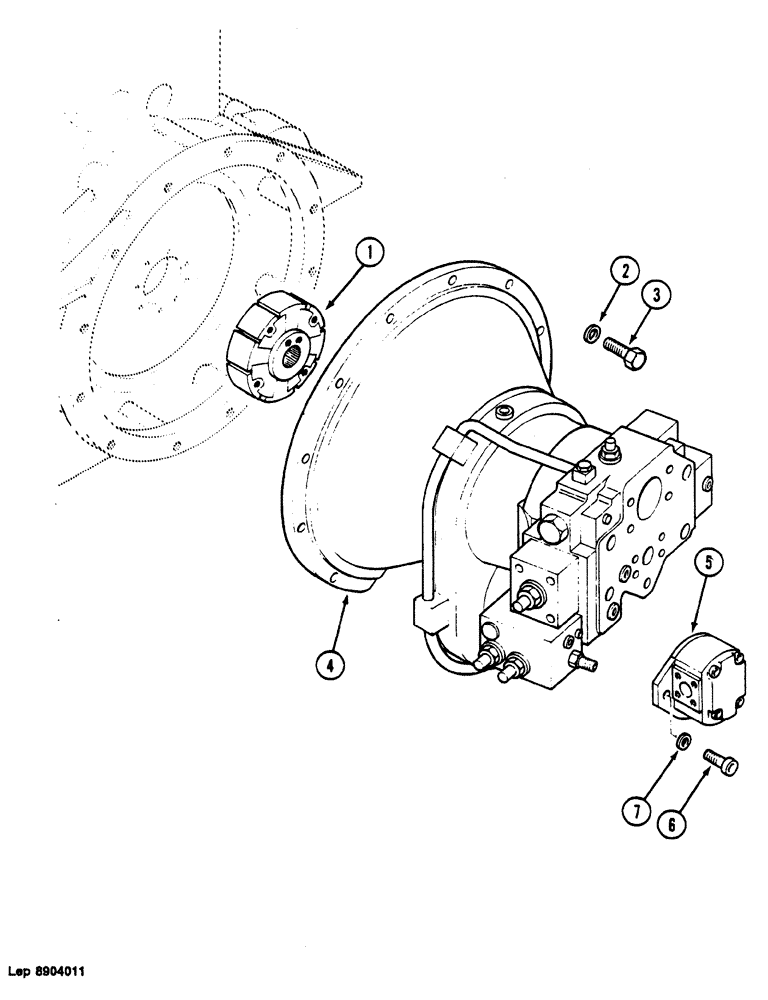

Запчасти Case 1088 (100) - PUMP COUPLING (35) - HYDRAULIC SYSTEMS

1

H8646259

COUPLING

1шт.

D32962

SCREW

M16 x 50

4шт.

2

N4328796

WASHER

10.25 x 7 x 20

5шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

5шт.

4

G4543564

PUMP

hydraulic, see Fig.112

1шт.

5

PUMP hydraulic, see Fig.126

1шт.

6

K532988

SCREW,Hex Soc Hd, M10 x 25, 10.9

2шт.

7

N4328796

WASHER

10.25 x 7 x 20

2шт.
