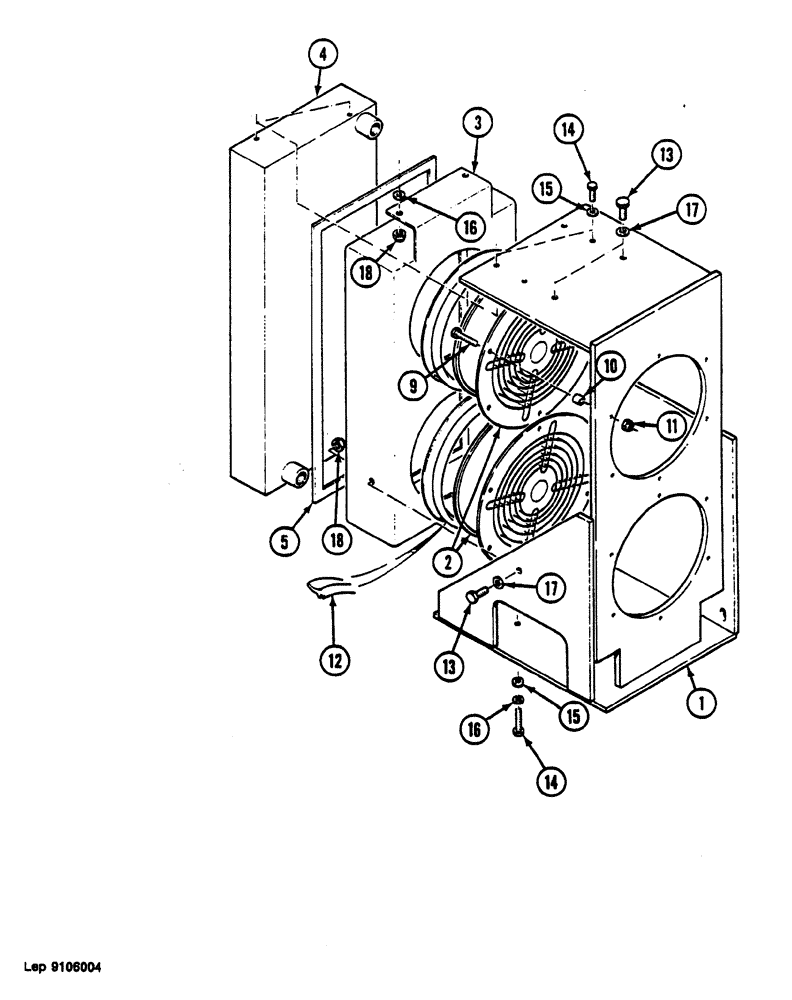

Запчасти Case 1088 (088) - COOLER ADAPTATION (35) - HYDRAULIC SYSTEMS

1

U1155607

SUPPORT

SPARE PART

1шт.

2

C1941846

VENTILATOR

FAN

2шт.

3

L455617

ELECTRICAL CABINET

SPARE PART BOX

1шт.

4

G4143203

COOLER, OIL

SPARE PART

1шт.

5

V9646012

GASKET

SPARE PART SEAL

1шт.

9

B833889

SCREW

M6 x 50 x 50

1шт.

10

C35031

WASHER

6.25 x 12 x 15

12шт.

11

F234513

SAFETY NUT

M6

12шт.

12

SEAL door, order T303111, length: 1500 mm

1шт.

13

C1633830

SCREW,M10 x 50mm, Cl 10.9

M10 x 50 x 26

4шт.

14

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

4шт.

15

T34609

WASHER

M8

4шт.

16

V3528794

WASHER

8.25 x 6 x 20

16шт.

17

V34611

WASHER

M10 U

16шт.

18

G34598

SAFETY NUT

M10

4шт.
