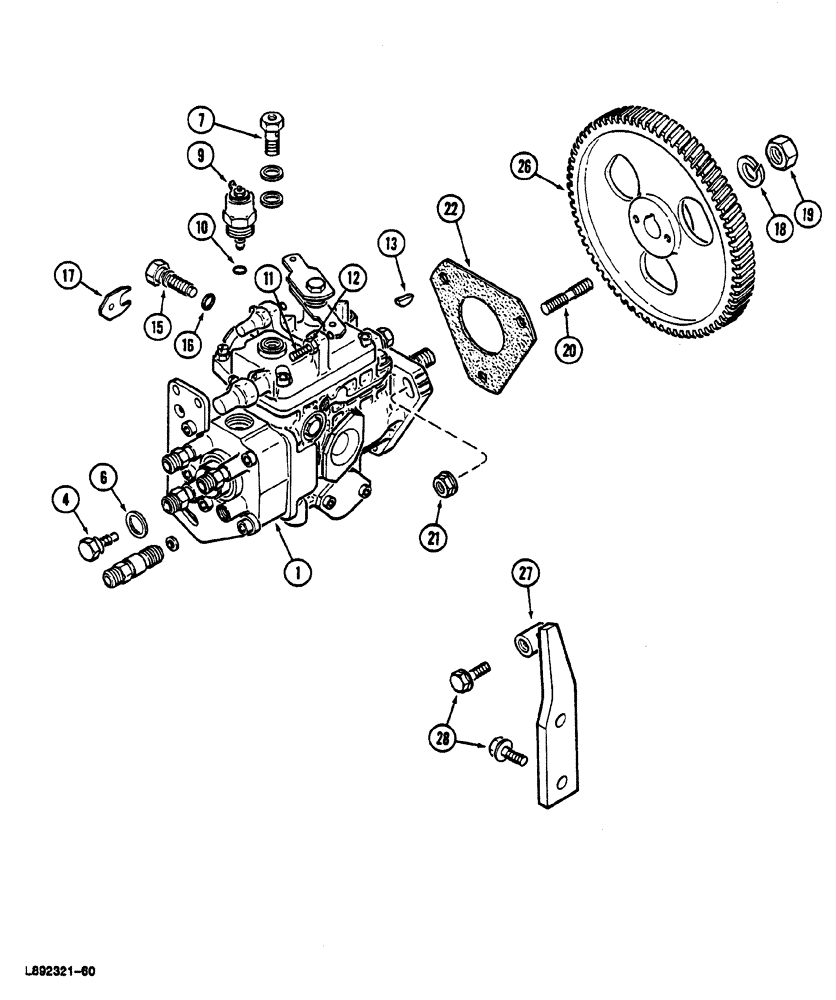

Запчасти Case 1088 (060) - FUEL INJECTION PUMP AND DRIVE (10) - ENGINE

1

J917027

PUMP, FUEL INJECTION

PUMP, INJECTION Consists of: Refs. 4-19, replace J910628

1шт.

1

JR929658

REMAN-INJECTION PUMP

Remanufactured Injection Pump

1шт.

1

JC929658

CORE-INJECTION PUMP

Return Part Number

1шт.

4

J903572

BLEED SCREW,M8 x 1 x 23.10mm

CONNECTION

1шт.

6

J903573

GASKET

SEAL

1шт.

7

J905465

BANJO BOLT

1шт.

9

J903576

SOLENOID

CONTACT

1шт.

10

J903577

SEAL

1шт.

11

J904782

SET SCREW,Sl, M6 x 40mm, Half Dog Pt

1шт.

12

J904783

NUT

1шт.

13

J902332

KEY

1шт.

15

J904784

SCREW,Hex Skt, M10 x 1 x 35mm

1шт.

16

J904785

O-RING,8 mm ID x 2.5 mm

1шт.

17

J904786

PLATE

1шт.

18

92-9

BEARING WASHER,9/16"

1шт.

19

J903738

NUT

M14

1шт.

J903570

GASKET,5.4mm ID x 12mm OD x 1mm Thk

SEAL

1шт.

20

J902501

STUD

STUD M8 x 48

3шт.

21

J900589

NUT

M8

3шт.

22

J914389

GASKET

SEAL

1шт.

26

J912885

PINION

replace J914912

1шт.

27

J905313

LEVER

SUPPORT

1шт.

28

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.
