(058) - FUEL FILTER AND LIFT PUMP

Запчасти Case 1088 (058) - FUEL FILTER AND LIFT PUMP (10) - ENGINE

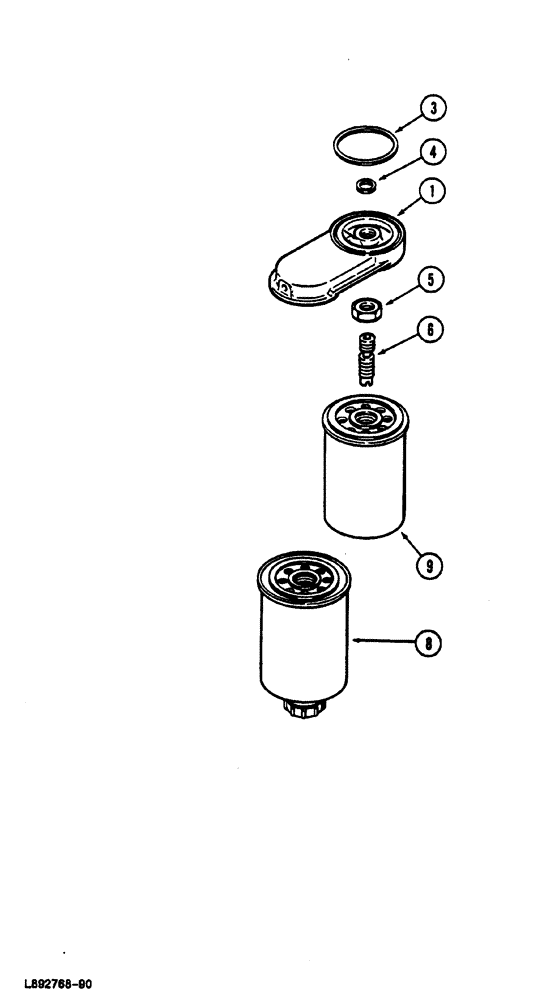

Схема запчастей Case 1088 - (058) - FUEL FILTER AND LIFT PUMP (10) - ENGINE
8
3
4
1
6
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

replace J904362

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING SEAL

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING SEAL

1шт.

5

J903293

JAM NUT

1шт.

6

J903845

BANJO BOLT

CONNECTION

1шт.

A77470

SEPARATOR

SET spare parts, Consists of Refs. 8 and 9

1шт.

8

J903410

FILTER

1шт.

9

J903640

FILTER, FUEL

1шт.

Выбрано товаров: 8
