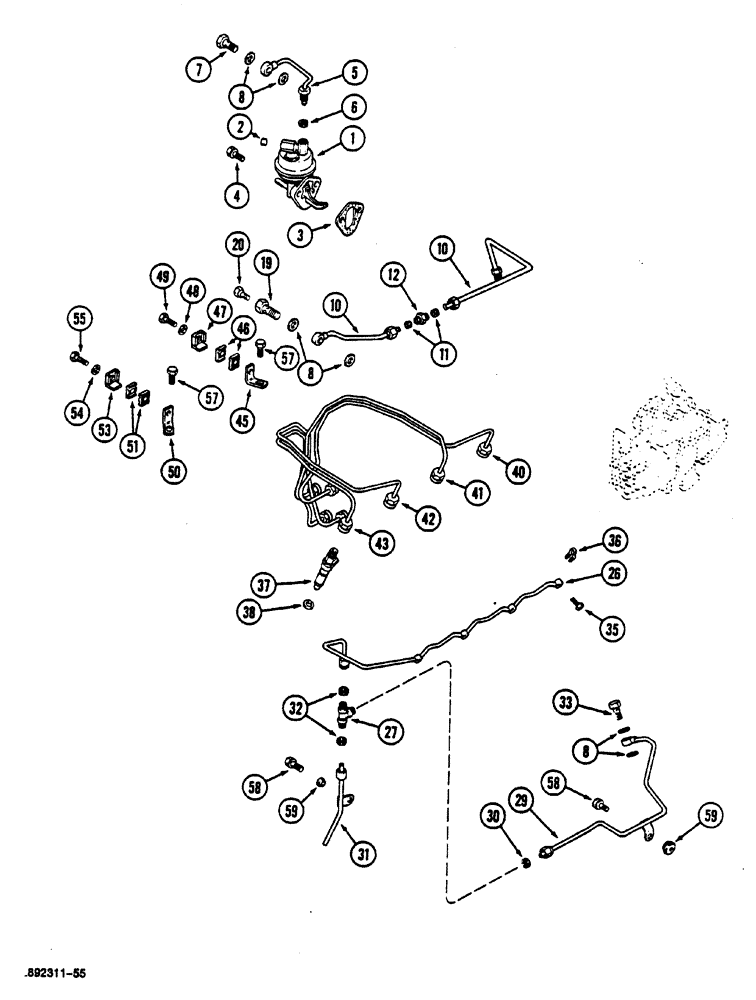

Запчасти Case 1088 (054) - FUEL INJECTOR SYSTEM (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
J904374
PUMP
1шт.
3
J914304
GASKET
SEAL
1шт.
4
845-8020
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
2шт.
5
J905649
FUEL TUBE,8 mm OD x 233.5 mm L
PIPELINE, Consists of: Ref. 6
1шт.
6
222-101
SLEEVE,3/16" Tube
1шт.
8
J903037
PACKING RING
SEAL
6шт.
10
J912783
FUEL TUBE,363.9, 84 mm L
PIPELINE, Consists of: Ref. 11
1шт.
11
222-103
SLEEVE,5/16" Tube
2шт.
12
222-4
FITTING,9/16"-24, Flex Tube
CONNECTOR
1шт.
J905860
BANJO BOLT
female, Consists of: Refs. 19 and 20
1шт.
19
SCREW female, order J905860
1шт.
20
SCREW order J905860
1шт.
26
J909695
FUEL TUBE
PIPE
1шт.
222-101
SLEEVE,3/16" Tube
1шт.
27
222-121
TEE,3/16", Flex Tubing
Piece
1шт.
222-661
TUBE NUT,3/8"-24, 45 Degree Fl, Comp
3шт.
29
J905699
FUEL TUBE,4.76 mm OD
PIPELINE, Consists of: Ref. 30
1шт.
30
222-101
SLEEVE,3/16" Tube
1шт.
31
J905692
FUEL TUBE
PIPELINE, Consists of: Ref. 32
1шт.
32
222-101
SLEEVE,3/16" Tube
1шт.
35
J905307
BANJO BOLT,M6 x 1 x 14.30mm
Female
4шт.
37
INJECTOR, See Page
4шт.
38
J900808
SEAL
4шт.
40
J903480
FUEL TUBE,21 mm ID x 64 mm OD
PIPELINE cylinder: Nr 1
1шт.
41
J903481
FUEL TUBE,21 mm ID x 64 mm OD
PIPELINE cylinder: Nr 2, cylinder: Nr 3
1шт.
43
J903483
FUEL TUBE,21 mm ID x 64 mm OD
PIPELINE cylinder: Nr 4
1шт.
A77484
SUPPORT ASSY.
Consists of: Refs. 45-49
1шт.
45
SUPPORT order A77484
1шт.
46
BRACKET order A77484
2шт.
47
PIECE angle, order A77484
1шт.
48
WASHER order A77484
1шт.
49
SCREW order A77484
1шт.
42
J903482
FUEL TUBE,21 mm ID x 64 mm OD
PIPELINE
1шт.
A77485
SUPPORT ASSY.
Consists of: Refs. 50-55
1шт.
50
SUPPORT order A77485
1шт.
51
BRACKET order A77485
2шт.
53
PIECE angle, order A77485
1шт.
54
WASHER order A77485
1шт.
55
SCREW order A77485
1шт.
57
J918109
FLANGE BOLT,Hex, M8 x 1.25 x 25mm
Replace J904341
2шт.
58
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
59
J900267
SEAL
2шт.
Выбрано товаров: 45
