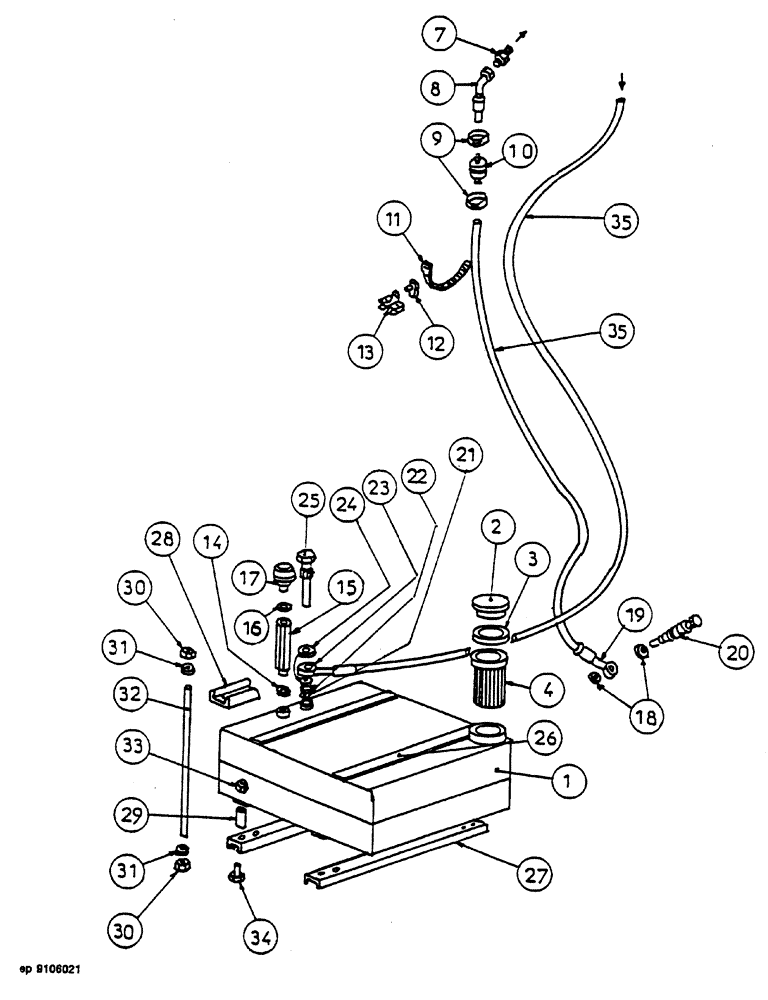

Запчасти Case 1088 (052) - ENGINE FUEL SYSTEM (10) - ENGINE

1

N40216

FUEL TANK

RESERVOIR, Consists of: Ref. 26

1шт.

2

Z43262

PLUG

Consists of: Ref. 3

1шт.

3

P46096

WASHER, SEALING

SEAL WASHER

1шт.

4

G50537

FILTER BOWL

1шт.

5

F37495

PLUG

1шт.

6

W146001

SEAL

SEAL WASHER

1шт.

7

A2337559

FITTING

CONNECTION

1шт.

8

X1337057

FITTING

CONNECTION

1шт.

9

P36951

COLLAR

8шт.

10

L1950594

FILTER, FUEL

1шт.

11

N51946

CLAMP

COLLAR 258 mm

1шт.

12

PP2036939

CLASP

8шт.

13

Z2036902

CLASP

8-13

8шт.

14

V28424

COMPOSITE SEAL

1шт.

15

K37775

TUBE

PIPE

1шт.

16

B28429

COMPOSITE SEAL

1шт.

17

K50586

BREATHER

1шт.

18

C28430

COMPOSITE SEAL

2шт.

19

Z50599

RETURN PIPE

LINE

1шт.

20

X37833

COCK

SHUTOFF

1шт.

21

X45239

SEAL

1шт.

22

X1037321

RESTRICTOR

1шт.

23

R1737021

ANGLE

CONNECTION

1шт.

24

Z45240

WASHER, SEALING

SEAL WASHER

2шт.

25

G730095

BOLT,M16 x 1.5 x 26mm

female

1шт.

26

M3116

FELT

SPARE PART

4шт.

27

G3125706

IRON angle

2шт.

28

F3125705

IRON angle

2шт.

29

W1929260

SPACER

4шт.

30

L34211

NUT,M8

8шт.

31

Q35020

WASHER

M8

8шт.

32

L2402

STEM

SPARE PART threaded 300 mm

4шт.

33

T34563

NUT

M10

4шт.

34

120075

BOLT,M10 x 1.5 x 106.58mm, Cl 8.8

4шт.

35

R1103647

PIPE

HOSE 2500 mm

2шт.
