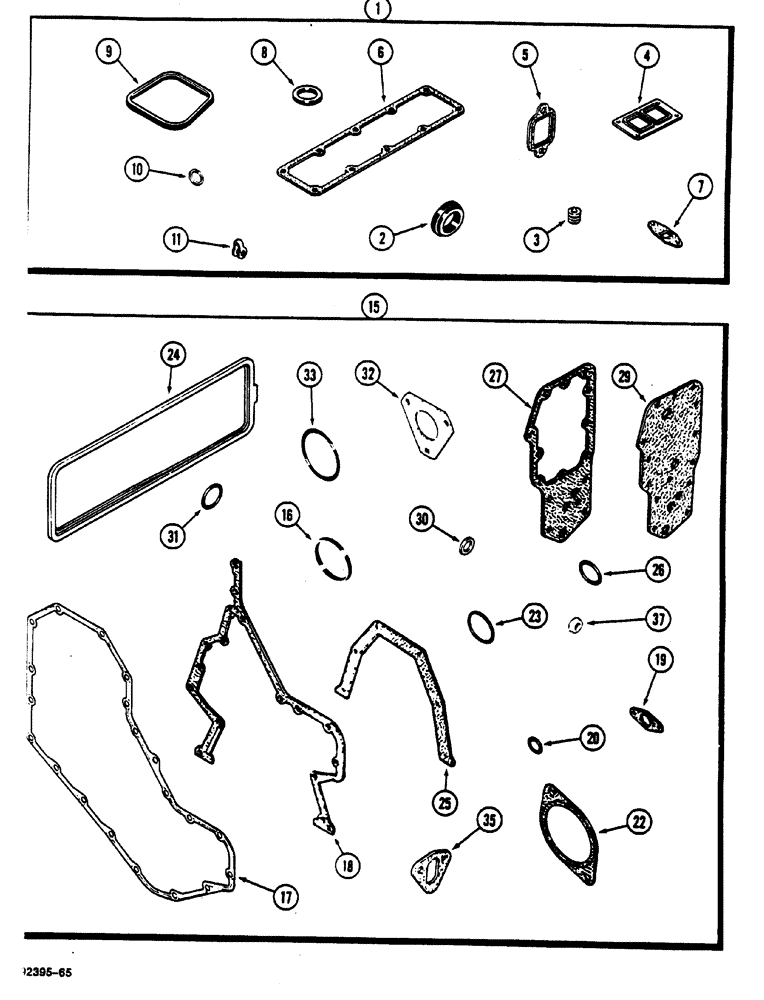

Запчасти Case 1088 (050) - GASKET KITS (10) - ENGINE

1

A77672

GASKET KIT

SET of seals, Consists of: Refs. 2-11

1шт.

2

J903301

GASKET

SEAL

1шт.

3

J901097

SEAL

8шт.

4

J901356

GASKET,0.5mm Thk

SEAL

1шт.

5

J905443

MANIFOLD GASKET

SEAL

4шт.

6

J914028

GASKET

SEAL

1шт.

7

J914388

GASKET

SEAL

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

O-RING

1шт.

9

J902666

GASKET

SEAL

4шт.

10

J900808

SEAL

4шт.

11

J903380

SEAL

4шт.

15

A77671

GASKET KIT

SET of seals, Consists of: Refs. 16-37

1шт.

16

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

17

J914385

GASKET,1.02mm Thk

SEAL

1шт.

18

J916131

GASKET

SEAL

1шт.

19

J905595

GASKET

SEAL

1шт.

20

J913994

O-RING

1шт.

22

J913192

GASKET

SEAL

1шт.

23

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replace 22290R1)

1шт.

24

J904056

GASKET

SEAL

1шт.

25

J914386

GASKET

SEAL

1шт.

26

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING

1шт.

27

J918256

GASKET

SEAL replace J914387

1шт.

29

J918257

GASKET

SEAL replace J912532

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

female

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

32

J914389

GASKET

SEAL

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

35

J914304

GASKET

SEAL

1шт.

37

J900267

SEAL

4шт.
