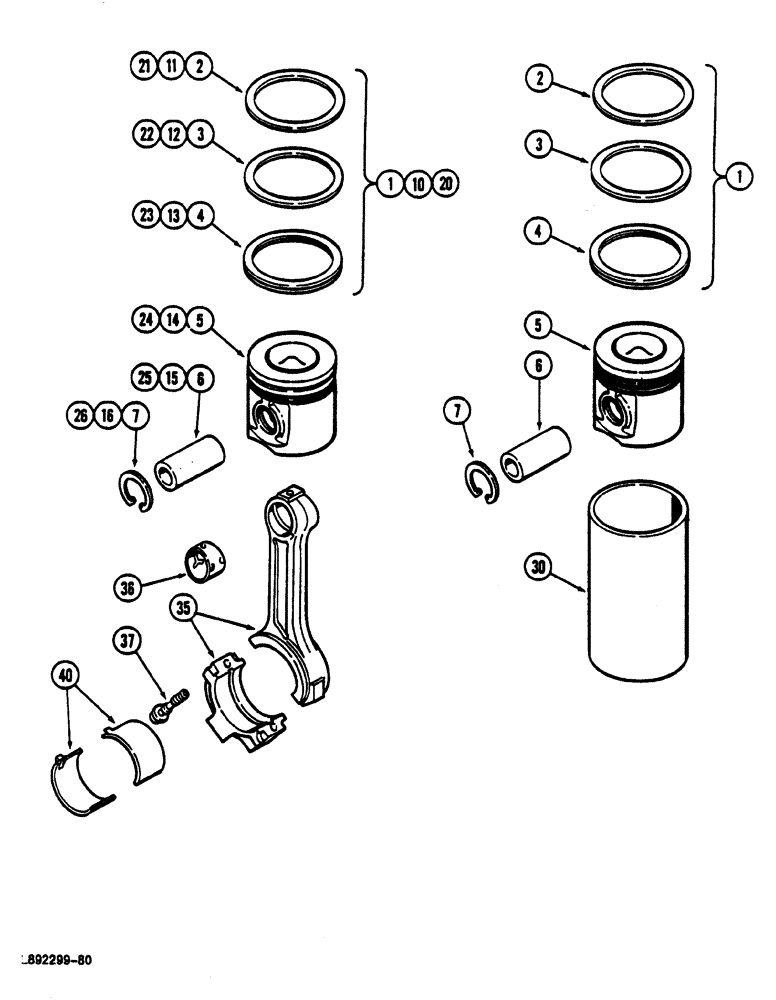

Запчасти Case 1088 (046) - PISTONS (10) - ENGINE

A77419

PISTON

Consists of: Refs. 1-7

4шт.

1

A77500

PISTON RING SET

KIT, Consists of: Refs. 2 ,3 and 4

1шт.

2

SEGMENT order A77500

1шт.

3

SEGMENT order A77500

1шт.

4

SEGMENT order A77500

1шт.

5

PISTON order A77419

1шт.

6

J901793

PISTON PIN

1шт.

7

J901706

RING

CIRCLIP

2шт.

8

J904166

SLEEVE

service repair only : when liner is installed use only piston A77419 assembly

1шт.

A77638

PISTON

Consists of: Refs. 10-16

4шт.

10

A77501

PISTON RING SET

KIT, Consists of: Refs. 11, 12 and 13 , thickness: 0.50 mm

1шт.

11

SEGMENT order A77501

1шт.

12

SEGMENT order A77501

1шт.

13

SEGMENT order A77501

1шт.

14

PISTON order A77638

1шт.

15

J901793

PISTON PIN

1шт.

16

J901706

RING

CIRCLIP

2шт.

A77637

PISTON

Consists of: Refs. 20-26

4шт.

20

A77502

PISTON RING SET

KIT, Consists of: Refs. 21, 22 and 23, thickness: 1.00 mm

1шт.

21

SEGMENT order A77502

1шт.

22

SEGMENT order A77502

1шт.

23

SEGMENT order A77502

1шт.

24

PISTON order A77637

1шт.

25

J901793

PISTON PIN

1шт.

26

J901706

RING

CIRCLIP

2шт.

35

J901569

ROD, CONNECTING

Consists of: Refs. 36 and 37

4шт.

84145405R

REMAN-CONNECTING ROD

1088, Reman For New P/N J901569

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

36

BUSHING order J901569

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

40

A77465

BEARING SET

SET of

4шт.

40

A77466

BEARING SET

SET of, thickness: 0.25 mm

4шт.

40

A77467

BEARING LINER

SET of, thickness: 0.50 mm

4шт.

40

A77468

BEARING SET

SET of, thickness: 0.75 mm

4шт.

40

A77469

BEARING SET

SET of, thickness: 1.00 mm

4шт.
