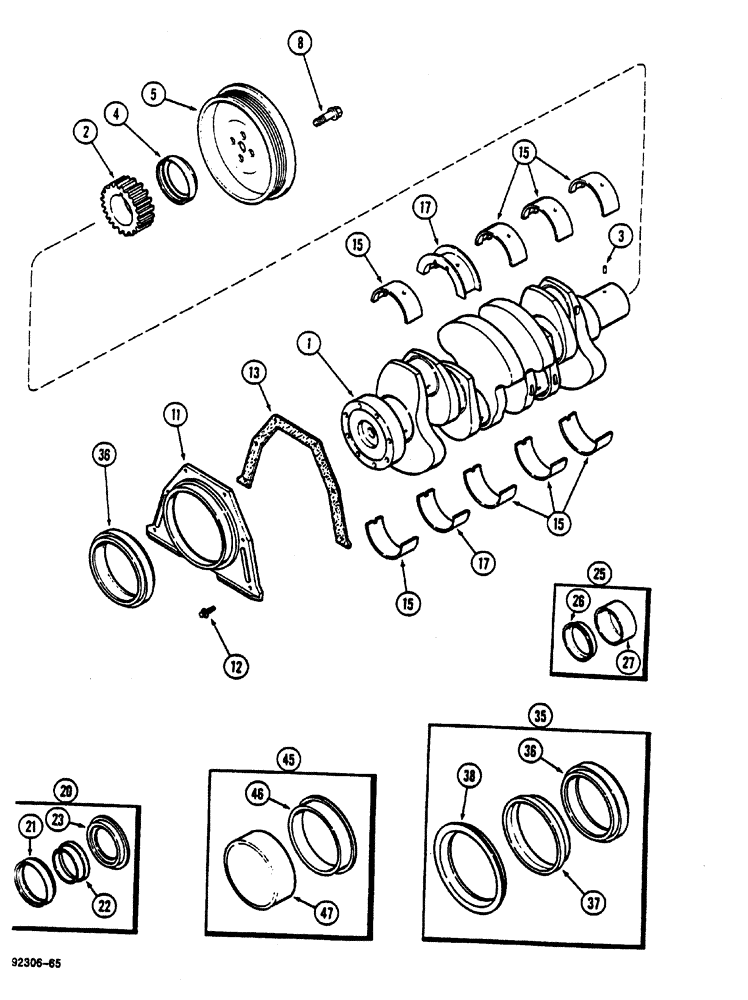

Запчасти Case 1088 (040) - CRANKSHAFT (10) - ENGINE

1

J918323

CRANKSHAFT

Consists of: Refs. 2 and 3, replace J916190

1шт.

J929036R

REMAN-CRANKSHAFT

1088, Reman for New P/N J918323

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J912883

PINION

replace J901258

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

DOWEL

1шт.

4

SEAL order J904353

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

8

J903857

BOLT,Hex, M12 x 1.25 x 36mm

SCREW M12 x 36

4шт.

11

J913447

SEAL RETAINER

SUPPORT

1шт.

12

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

13

J914386

GASKET

SEAL

1шт.

15

A77405

CRANKSHAFT BEARING

SETof

4шт.

15

A77472

BEARING SET

SET of, thickness: 0.25 mm

4шт.

15

A77474

BEARING SET

SET of, thickness: 0.50 mm

4шт.

15

A77476

BEARING SET

SET of, thickness: 0.75 mm

4шт.

15

A77478

BEARING SET

SET of, thickness: 1.00 mm

4шт.

17

A77406

CRANKSHAFT BEARING

SET of

1шт.

17

A77473

THRUST BEARING

SET of, thickness: 0.25 mm

1шт.

17

A77475

THRUST BEARING

SET of, thickness: 0.50 mm

1шт.

17

A77477

THRUST BEARING

SET of, thickness: 0.75 mm

1шт.

17

A77479

THRUST BEARING

SET of, thickness: 1.00 mm

1шт.

20

J904353

GASKET KIT

SET spare parts, Consists of: Refs. 21, 22 and 23

1шт.

21

SEAL order J904453

1шт.

22

TOOLS order J904353

1шт.

23

TOOLS order J904353

1шт.

25

J906080

PACKAGE, REPAIR

SET spare parts, Consists of: Refs. 26 and 27

1шт.

26

SLEEVE order J906080

1шт.

27

TOOLS order J906080

1шт.

35

J909410

GASKET KIT

SET spare parts, Consists of: Refs. 36, 37 and 38

1шт.

36

SEAL order J909410

1шт.

37

TOOLS order J909410

1шт.

38

TOOLS order J909410

1шт.

45

J906081

SLEEVE

SET spare parts, Consists of: Refs. 46 and 47

1шт.

46

SLEEVE order J906081

1шт.

47

TOOLS order J906081

1шт.
