Запчасти Case 1088 (036) - CYLINDER BLOCK (10) - ENGINE

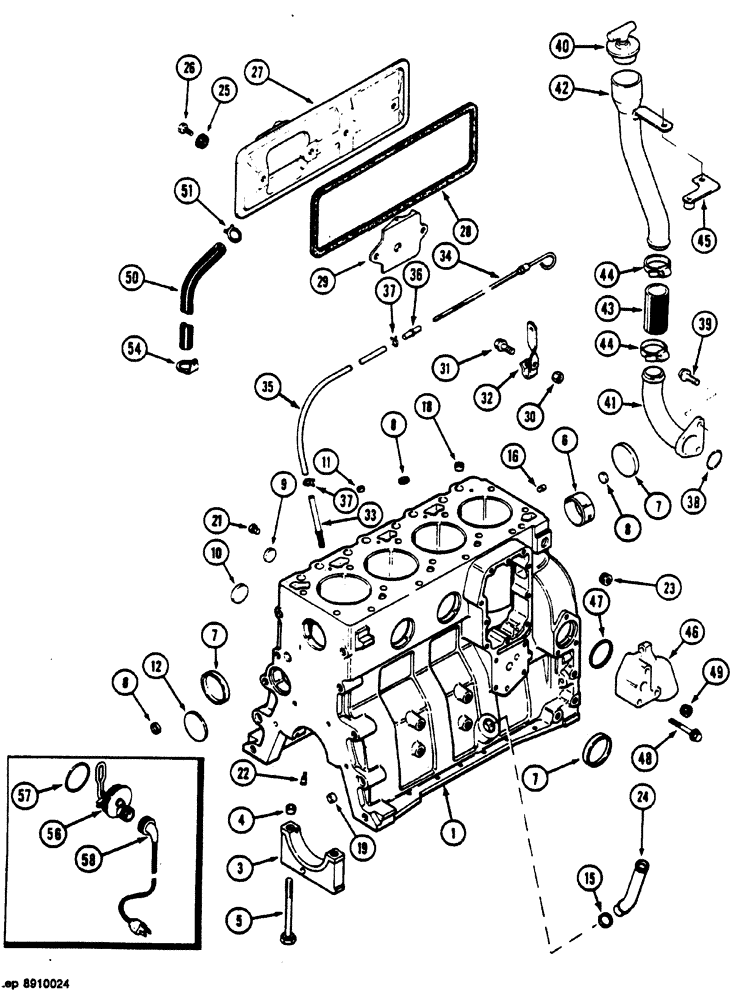

Схема запчастей Case 1088 - (036) - CYLINDER BLOCK (10) - ENGINE
25
21
30
5
23
44
10
33
42
11
45
47
19
34
39
51
43
9
12
3
36
6
56
49
27
18
8
38
7
7
28
58
50
37
8
40
35
24
16
46
4
37
7
31
41
32
26
22
57
48
1
44
54
15
29
8

Артикул

Название

Примечание

Количество

J905378

SKELETON ENGINE

HOUSING, Consists of: housing, pistons assembly, connecting rods, crankshaft, bearings, screw, dowels, sleeves and Housing Repair Kit P/N J905813

1шт.

1

J905376

CRANKCASE

HOUSING, Consists of: Refs. 3-9

1шт.

3

J900967

BEARING CAP

5шт.

4

J900068

BEARING WASHER

DOWEL

10шт.

5

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

SCREW

10шт.

6

BUSHING see Page 47, 49

1шт.

7

J900965

PLUG

58 mm OD

4шт.

8

J900956

PLUG

18 mm OD

3шт.

9

A77539

PLUG

26 mm

2шт.

J905813

PACKAGE, REPAIR

SET spare part, Consists of: Refs. 10-23

1шт.

10

J900958

PLUG

32 mm OD

2шт.

11

J900955

PLUG

10 mm OD

1шт.

12

J900687

PLUG

60 mm OD

1шт.

15

A77439

PLUG

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

DOWEL 16 mm

2шт.

18

J902343

DOWEL

16 mm OD

2шт.

19

J900068

BEARING WASHER

DOWEL 18 mm OD

2шт.

21

J906619

PLUG,1/8" - 27

2шт.

22

J901020

NOZZLE CAP

4шт.

23

A77429

PLUG

1шт.

24

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

LINE

1шт.

25

J900267

SEAL

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

27

J916441

COVER

PLATE

1шт.

28

J904056

GASKET

SEAL

1шт.

29

J907586

BAFFLE

1шт.

30

J900240

NUT

1шт.

31

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

32

J905804

BRACKET

SUPPORT order A77634

1шт.

33

J905425

TUBE,9.52 mm OD x 93 mm L

PIPE

1шт.

34

J907709

DIPSTICK

GAUGE

1шт.

35

J905799

TUBE,9.5 mm ID x 12.7 mm OD x 533.4 mm L

PIPE

1шт.

36

J905802

FITTING,9.53 mm OD x 39 mm L

FITTING end

1шт.

37

214-103

HOSE CLAMP,#8, 1/2", Spring

COLLAR

2шт.

38

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

39

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

40

A77424

FILLER CAP

1шт.

41

J912687

TUBE,38.1 mm ID x 195.9 mm L

PIPE

1шт.

42

J912689

TUBE,38.1 mm OD x 371.1 mm L

PIPE

1шт.

43

J912686

HOSE,38.1mm ID x 84mm L

1шт.

44

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

45

J912683

TUBE

SUPPORT

1шт.

46

J903103

MANIFOLD

1шт.

47

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

48

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

3шт.

49

A77429

PLUG

2шт.

50

J906593

HOSE

1шт.

51

J904230

CLAMP,25.4mm

COLLAR

1шт.

54

J909670

CLIP

COLLAR

1шт.

A77634

KIT

heater, Consists of: Refs. 56 and 57

1шт.

56

ELEMENT

1шт.

57

J905113

CABLE

1шт.

58

J910517

O-RING

SEAL

1шт.

Выбрано товаров: 53
