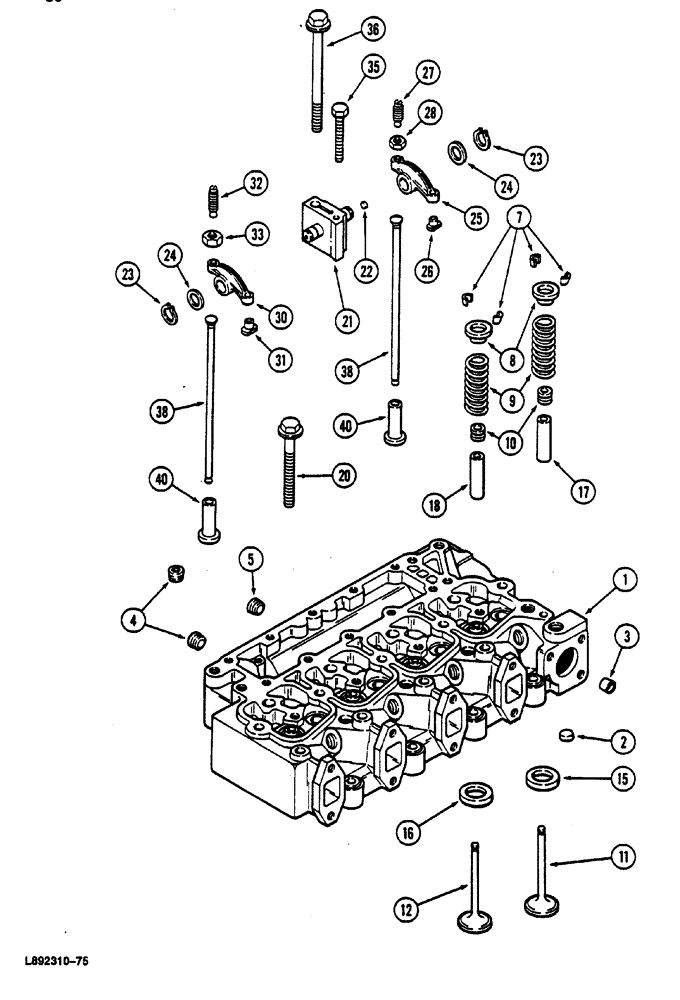

Запчасти Case 1088 (030) - CYLINDER HEAD AND VALVE MECHANISM (10) - ENGINE

J910275

HEAD (CYLINDER)

valve, Consists of: Refs. 1-12

1шт.

J913389

HEAD (CYLINDER)

valve, Consists of: Refs. 1and 2

1шт.

1

HEAD valve, order: J913389 or J910275

1шт.

2

J902606

PLUG

3шт.

4

A77429

PLUG

5шт.

5

J906619

PLUG,1/8" - 27

2шт.

7

CASJ900250

RETAINER

KEEPER

16шт.

8

J900299

RETAINER

CUPEL

8шт.

9

J900276

VALVE SPRING

8шт.

10

J901097

SEAL

8шт.

11

J901117

VALVE

intake

4шт.

12

J901607

VALVE

exhaust

4шт.

15

J906854

SEAT, VALVE

intake

4шт.

16

J904105

SEAT, VALVE

exhaust

4шт.

17

J904408

GUIDE

intake, 14 mm OD

4шт.

18

J904409

GUIDE

exhaust,14 mm OD

4шт.

J906206

GUIDE

intake and exhaust, 11 mm OD

8шт.

20

J903938

BOLT

M12 x 70

4шт.

20

J903939

BOLT

M12 x 120

10шт.

21

J910814

SUPPORT

Consists of: Ref. 22

4шт.

22

J907555

PLUG

1шт.

23

J900242

SNAP RING

CIRCLIP

8шт.

24

J900245

WASHER

8шт.

25

J910811

ROCKER

ARM intake, Consists of: Refs. 26, 27 and 28

4шт.

26

ARM rocker, basic, order J910811

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

28

25-116

NUT,Hex, 3/8"-24, G5

1шт.

30

J910810

ROCKER

ARM exhaust, Consists of: Refs. 31, 32 and 33

4шт.

31

ARM rocker, basic, order J910810

1шт.

32

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

1шт.

35

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

36

J903940

BOLT

M12 x 180

4шт.

38

J904679

PUSH ROD

8шт.

40

J907240

TAPPET

PUSHER

8шт.
