Запчасти Case 1088 (028) - CYLINDER HEAD COVERS AND GASKET (10) - ENGINE

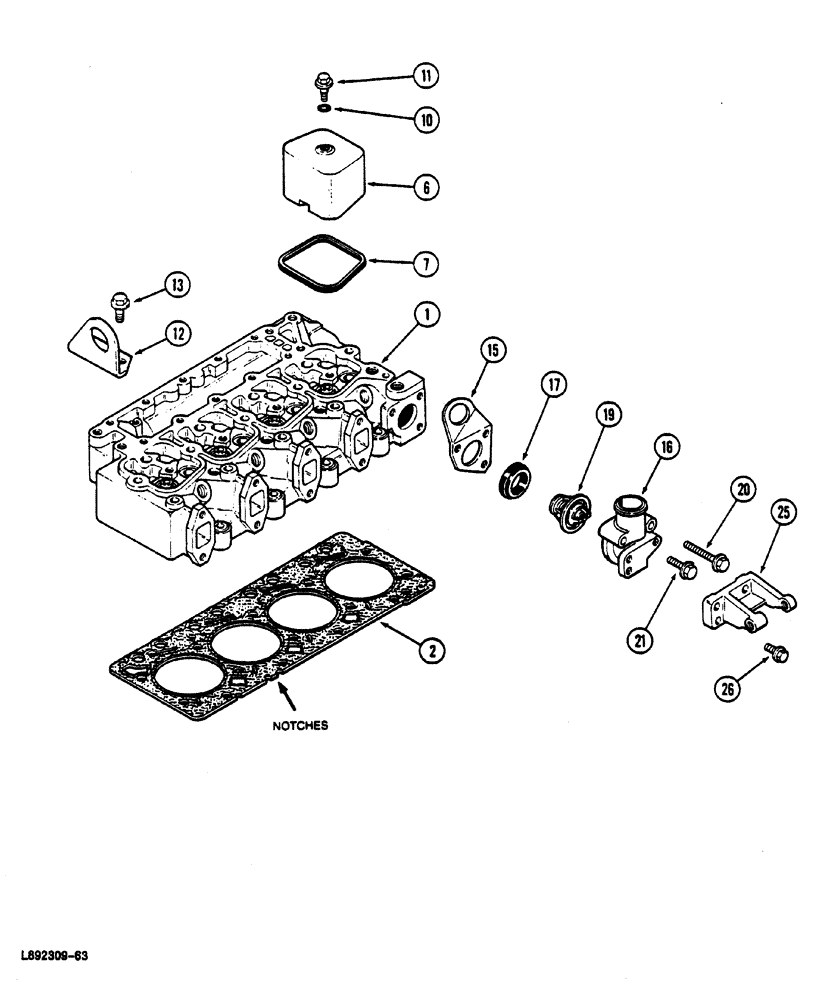

Схема запчастей Case 1088 - (028) - CYLINDER HEAD COVERS AND GASKET (10) - ENGINE
26
21
2
25
13
12
15
7
6
1
19
11
20
10
16
17

Артикул

Название

Примечание

Количество

1

HEAD valve, See Page 31

1шт.

2

J917354

GASKET

SEAL notches: 1, thickness: Standard

1шт.

2

J917355

GASKET

SEAL notches: 2, thickness: 0.23 mm

1шт.

2

J917356

GASKET

SEAL notches: 3, thickness: 0.51 mm

1шт.

6

J902604

COVER

PLATE

4шт.

7

J902666

GASKET

SEAL

4шт.

10

J910824

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

4шт.

11

J907049

BOLT,Hex

SCREW M8 x 21

4шт.

12

J908118

BRACKET

SUPPORT

1шт.

13

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

15

J903757

BRACKET

SUPPORT

1шт.

16

J914409

HOUSING

1шт.

17

J903301

GASKET

SEAL

1шт.

19

J917324

THERMOSTAT

replace J912587

1шт.

20

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

21

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

25

J910713

SUPPORT

1шт.

26

613-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

Выбрано товаров: 18
