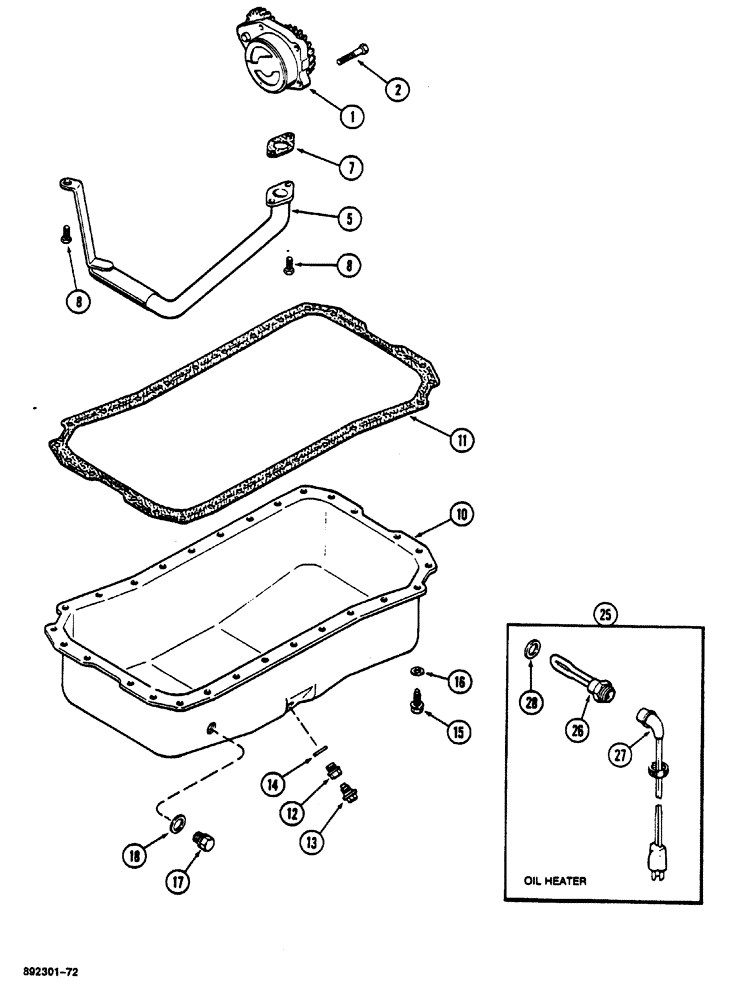

Запчасти Case 1088 (026) - OIL PUMP AND OIL PAN (10) - ENGINE

1

J914005

PUMP, ENGINE OIL

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

4шт.

5

J905223

TUBE

PIPE

1шт.

7

J914383

GASKET

SEAL

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

10

J907570

PAN

HOUSING

1шт.

11

SEAL order A77673

1шт.

13

J911638

PLUG,M18 x 1.5

1шт.

14

J900216

PACKING RING

SEAL

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

28шт.

16

J907537

SPRING WASHER

28шт.

17

J904386

PLUG

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEAL

1шт.

A77673

GASKET KIT

SET of seals, Consists of: Refs. 7, 11 and 14

1шт.

25

A77490

KIT

SET spare part, Consists of: Refs. 26 and 27

1шт.

26

ELEMENT order A77490

1шт.

27

J905113

CABLE

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

SEAL

1шт.
