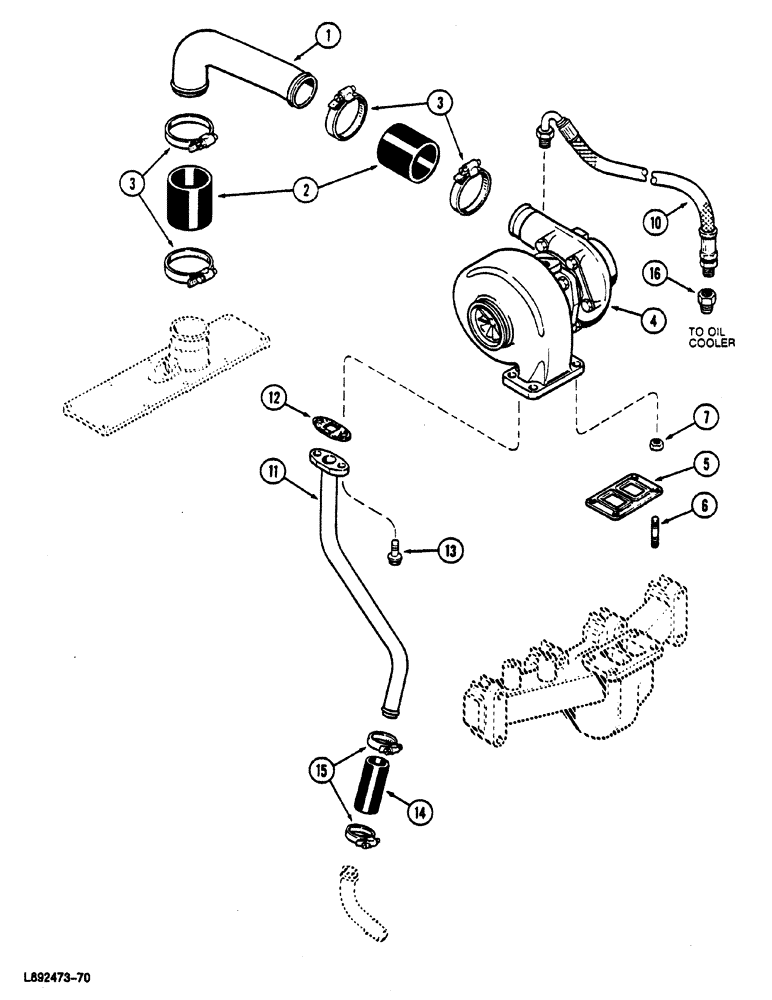

Запчасти Case 1088 (020) - TURBOCHARGER SYSTEM (10) - ENGINE

1

J906624

TUBE,2 mm OD x 265.1 mm L

PIECE elbow

1шт.

2

J916166

INTAKE AIR HOSE

SLEEVE replace J901804

2шт.

3

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Collar

4шт.

4

TURBOCHARGER see Fig. 022

1шт.

5

J901356

GASKET,0.5mm Thk

SEAL

1шт.

6

J905417

STUD

STUD M10 x 40

4шт.

7

J901961

NUT

M10

4шт.

10

J909545

HOSE

1шт.

11

J903741

TUBE

PIPELINE

1шт.

12

J914388

GASKET

SEAL

1шт.

13

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

14

J903745

LARGE HOSE

HOSE,LARGE

1шт.

15

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Collar

2шт.

16

A77457

FITTING

CONNECTOR

1шт.
