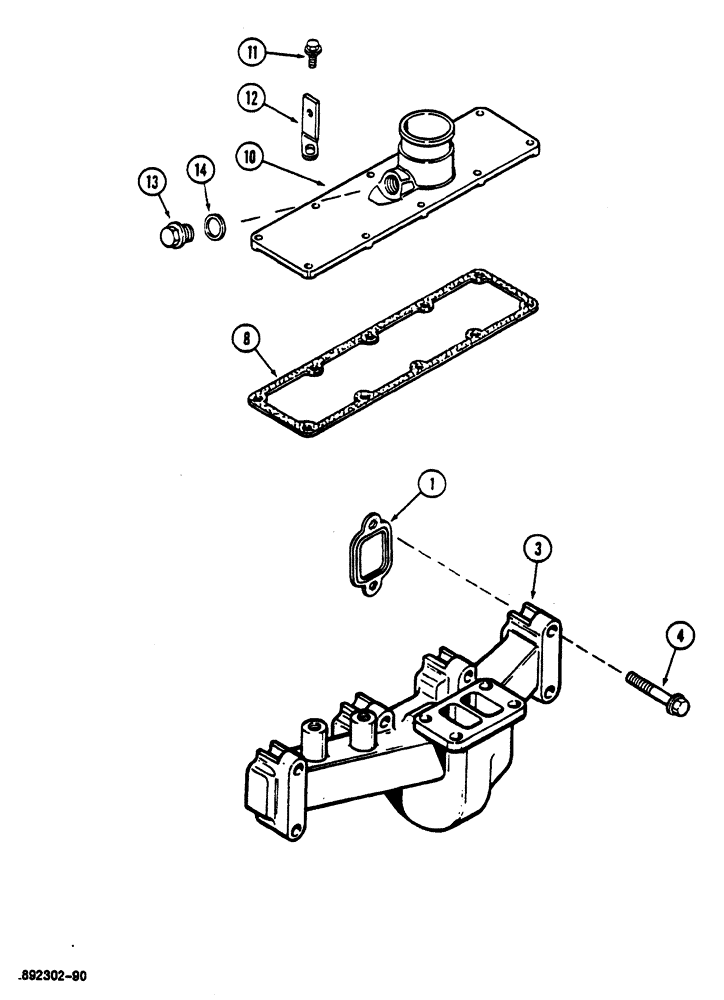

Запчасти Case 1088 (018) - INTAKE AND EXHAUST PIPES (10) - ENGINE

1

J905443

MANIFOLD GASKET

SEAL

4шт.

3

J901635

MANIFOLD

COLLECTOR

1шт.

4

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

8шт.

8

J914028

GASKET

SEAL

1шт.

A77416

COVER

COLLECTOR, Consists of: Refs. 10, 13 and 14

1шт.

10

COLLECTOR order A77416

1шт.

11

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

Replace J904341

10шт.

12

SUPPORT see Page 55

1шт.

13

J907185

PLUG

1шт.

14

J906773

WASHER

1шт.
