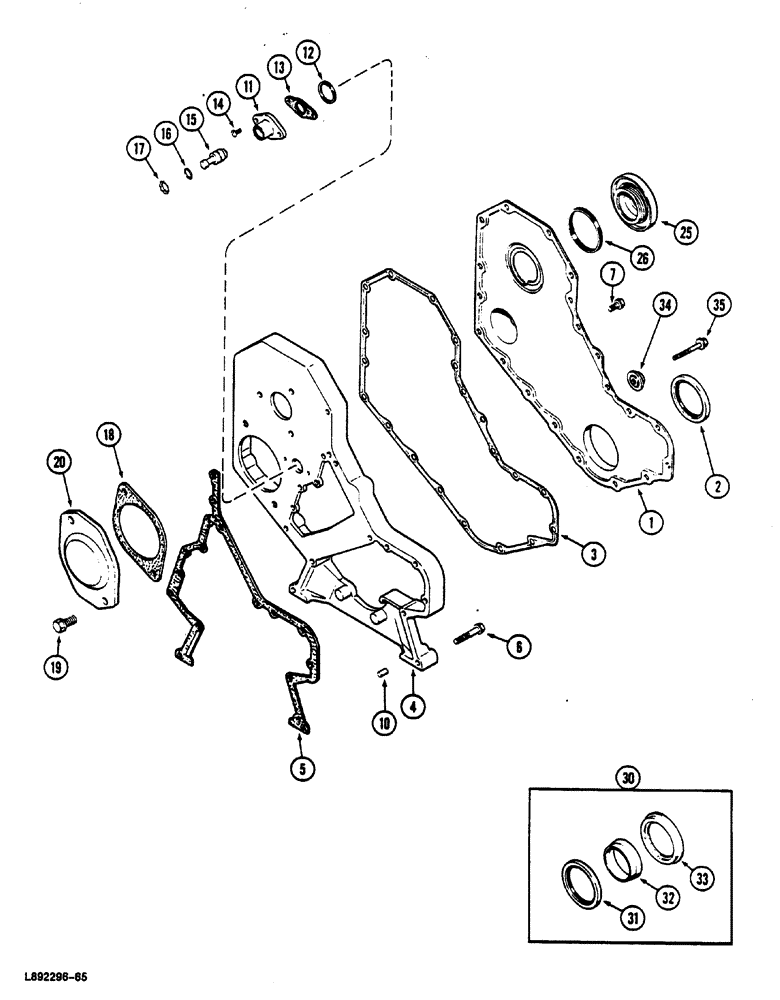

Запчасти Case 1088 (016) - FRONT GEAR COVER (10) - ENGINE

1

J903794

COVER

PLATE

1шт.

2

SEAL order J904353

1шт.

3

J914385

GASKET,1.02mm Thk

SEAL

1шт.

4

J917759

HOUSING

replace J910411

1шт.

5

J916131

GASKET

SEAL

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

10шт.

7

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

16шт.

10

J900257

PIN,10.01mm OD x 16mm L

DOWEL

2шт.

11

J905933

HOUSING

1шт.

12

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Replace J914092

1шт.

13

J905595

GASKET

SEAL

1шт.

14

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

15

J903924

PIN,18.87mm OD x 55mm L

1шт.

16

J913994

O-RING

1шт.

17

J904849

SNAP RING,0.875", Int, #87

locking

1шт.

18

J913192

GASKET

SEAL

1шт.

19

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

20

J909918

PLATE

cover

1шт.

25

J903463

PLUG,M63 x 5

PLUG

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

30

J904353

GASKET KIT

SET spare part, Consists of: Refs. 2, 31, 32 and 33

1шт.

31

SEAL order J904353

1шт.

32

TOOLS order J904353

1шт.

33

TOOLS order J904353

1шт.

34

J912772

RETAINER

BUSHING

1шт.

35

845-8060

BOLT,Hvy Hex, M8 x 60mm, Cl 8.8

1шт.
