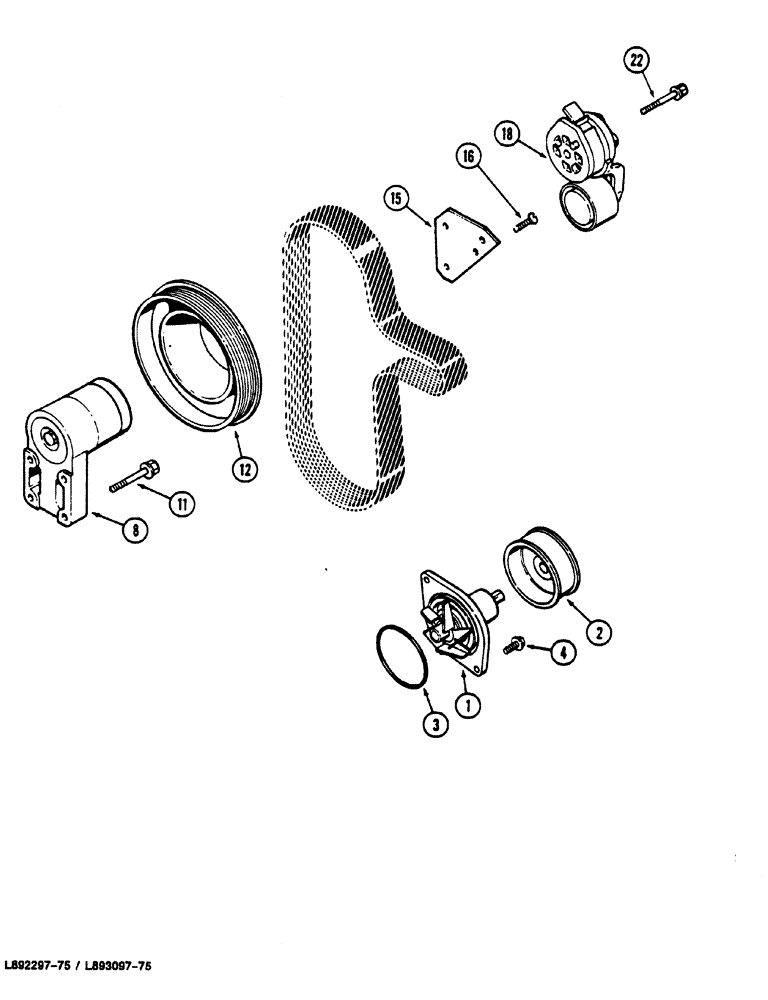

Запчасти Case 1088 (014) - WATER PUMP SYSTEM (10) - ENGINE

A77703

PUMP, WATER

Consists of: Refs. 1, 2 and 3, replace A77471

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy

1шт.

1

PUMP order A77703

1шт.

2

PULLEY order A77703

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

(Replace 22290R1)

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

8

J913433

BRACKET

SUPPORT

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914462

PULLEY,163mm OD

1шт.

15

J918183

BRACKET

SUPPORT replace J911744

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

2шт.

18

J914086

BELT TENSIONER

1шт.

22

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

Replace J904446

1шт.
