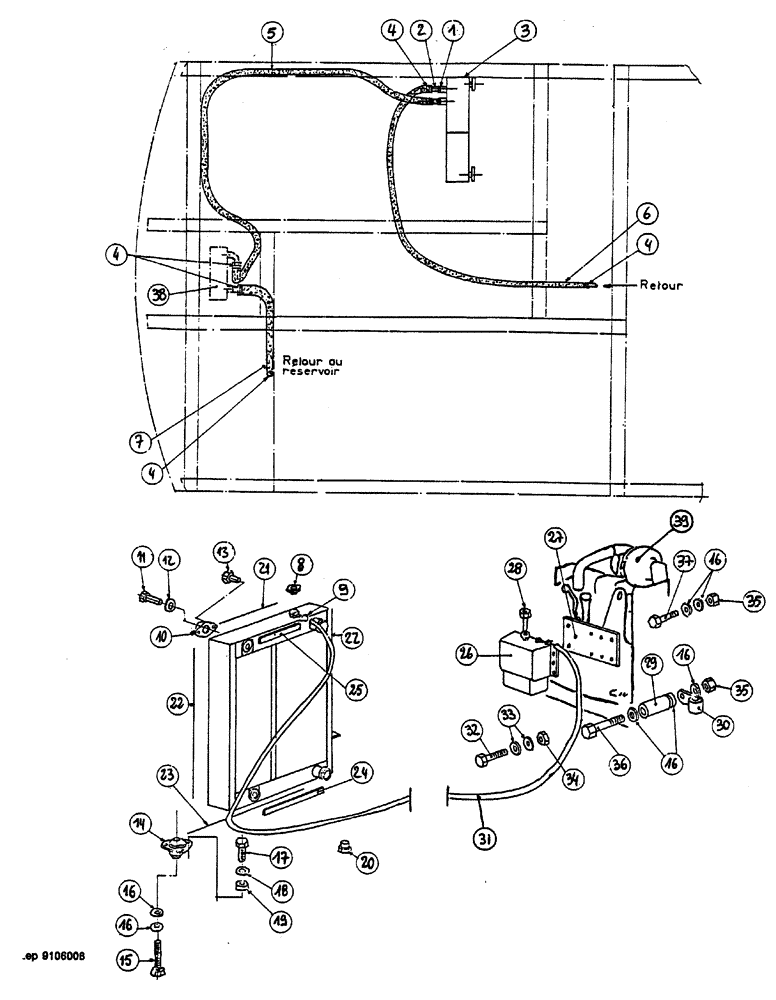

Запчасти Case 1088 (010) - ENGINE COOLING CIRCUIT (10) - ENGINE

1

V5746063

GASKET

SEAL

2шт.

2

L3237582

FITTING

CONNECTION

2шт.

3

C3743275

RADIATOR

COOLER

1шт.

4

Q36998

COLLAR CLAMP

25-40 mm

12шт.

5

PIPE order D1103635, length 3500 mm

1шт.

6

PIPE order D1103635, length 2000 mm

1шт.

7

PIPE order G1103638, length 1500 mm

1шт.

8

W2537495

PLUG

1шт.

9

P36951

COLLAR

10-16 mm

3шт.

10

Z3841459

ELEC. TERMINAL PIN

BLOCK

2шт.

11

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

12

B3528799

WASHER

6.25 x 4 x 15

2шт.

13

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

M6 x 12

4шт.

14

V2241484

ISOLATOR,69mm OD x 47mm L

BLOCK

2шт.

15

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

2шт.

16

W3528795

WASHER

10.25 x 7 x 25

23шт.

17

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

6шт.

18

V3528794

WASHER

8.25 x 6 x 20

6шт.

19

A134596

SAFETY NUT

M8

6шт.

20

F1137424

PLUG

1шт.

21

SEAL order X1303178, length 340 mm

1шт.

22

SEAL order X1303178, length 616 mm

2шт.

23

SEAL order X1303178, length 566 mm

1шт.

24

SEAL order A403144, length 710 mm

1шт.

25

SEAL order A403144, length 310 mm

1шт.

26

A184395

RESERVOIR

TANK expansion

1шт.

27

Z3122893

SUPPORT

1шт.

28

A184079

CAP

PLUG

1шт.

29

U1231875

TUBE

PIPE

1шт.

30

L51921

CLAMP

COLLAR 31-38 mm

1шт.

31

HOSE order G1103638, length mm

1шт.

32

U1133803

SCREW,Hex, M6 x 22

M6 x 22

4шт.

33

U35001

WASHER

M6 N

8шт.

34

F234513

SAFETY NUT

M6

4шт.

35

G34598

SAFETY NUT

M10

15шт.

36

86508573

BOLT,Hex, M10 x 110mm, Cl 8.8

1шт.

37

U0933818

SCREW M10 x 40

2шт.

38

W1155609

ASSEMBLY

COOLER see Page 89

1шт.

39

A174288

ENGINE ASSEMBLY

ENGINE ASSY MOTOR see Page 14-51, 55-65

1шт.
