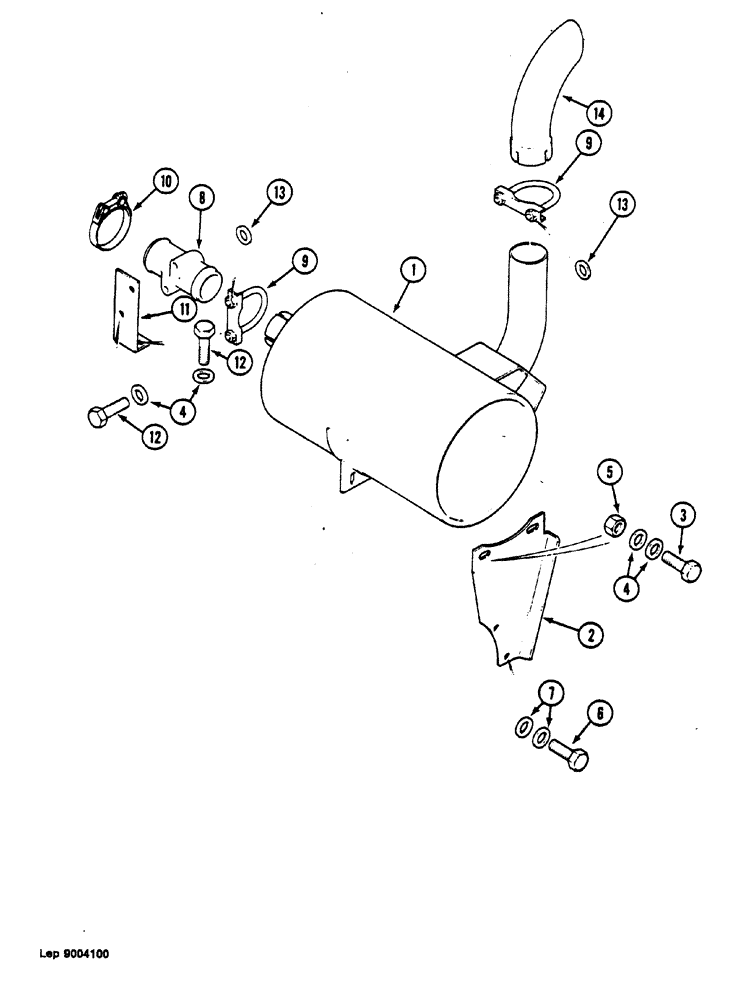

Запчасти Case 1088 (008) - EXHAUST (10) - ENGINE

1

K4241485

MUFFLER

SILENCER

1шт.

2

C5225694

LARGE PLATE

PLATE, LARGE

1шт.

3

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

4шт.

4

W3528795

WASHER

10.25 x 7 x 25

8шт.

5

100016

NUT,M10 x 1.5, Cl 8

2шт.

6

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

7

N4328796

WASHER

10.25 x 7 x 25

4шт.

8

J7946209

ADAPTER

1шт.

9

P3036956

CLAMP

COLLAR

2шт.

10

H3036950

CLAMP

COLLAR

1шт.

11

U5125614

PLATE

1шт.

12

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

4шт.

13

V35002

WASHER

WASHER M8 N

4шт.

14

L3950122

TUBE

PIPE

1шт.
