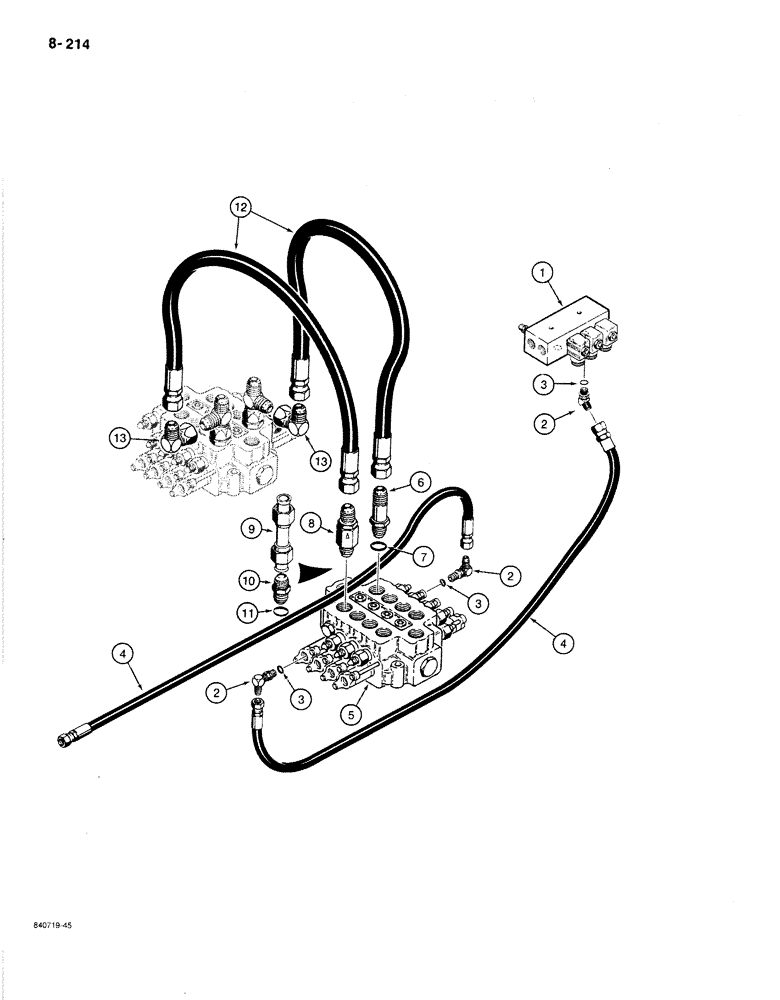

Запчасти Case 1080B (8-214) - FAST HOIST LINES (08) - HYDRAULICS

1

S516951

VALVE

ASSEMBLY - control, solenoid, parts list Figure 8-244, mounting parts Figure 8-192

1шт.

2

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, Includes: Ref. 3

3шт.

4

S241219

HOSE ASSY.

HOSE - 50" (1270 mm) long, valve control circuit

2шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figure 8-226 for correct valve component parts

1шт.

6

218-5034

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, long, front valve port, Includes: Ref. 7

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

8

S93154

VALVE

- check, lower control valve port

1шт.

9

S207938

TUBE ASSY.,1" OD x 6.6" L

TUBE - check valve to control valve

1шт.

10

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, rear valve port, Incl. Ref. 11

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

12

S8628

HOSE

- 36" (614 mm) long, inside control valve to tees in boom cylinder circuit, see Figure 8-213

2шт.

13

218-5234

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree Fem Sw

- 90 degree, hose to tee

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
