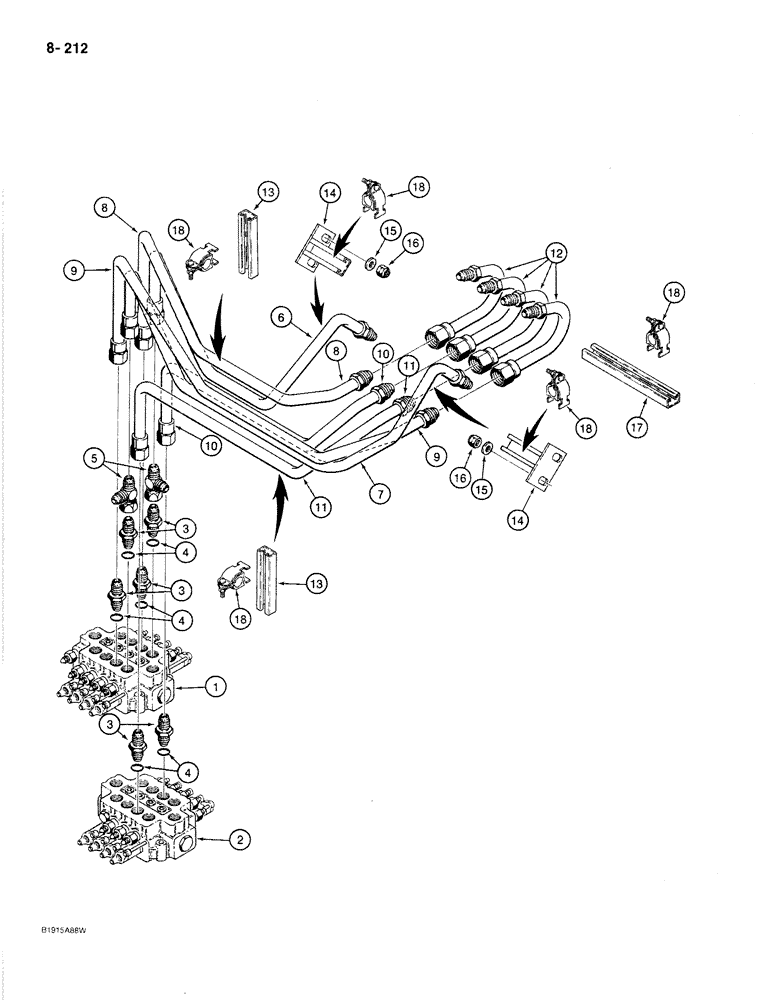

Запчасти Case 1080B (8-212) - BOOM, ARM, AND TOOL CYLINDER CIRCUIT, TUBES FROM VALVES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve and component parts

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figure 8-226 for correct valve and component parts

1шт.

3

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, valve ports, Incl. Ref. 4

6шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

5

218-5223

TEE,37 Degree, 1 5/16"-12 x 1 5/16"-12, Fem Sw Run

- outside ports, boom cylinder circuit

2шт.

6

S515314

TUBE ASSY.,1.25" OD

TUBE - boom cylinder circuit, short

1шт.

7

S515313

TUBE ASSY.,1.25" OD

TUBE - boom cylinder circuit, long

1шт.

8

S515311

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, short

1шт.

9

S515312

TUBE ASSY.,1.25" OD

TUBE - tool cylinder circuit, long

1шт.

10

S515356

TUBE ASSY.,1.25" OD

TUBE - arm cylinder circuit, short

1шт.

11

S515355

TUBE ASSY.,1.25" OD

TUBE - arm cylinder circuit, long

1шт.

12

S234334

TUBE ASSY.

TUBE - U-shape

4шт.

13

S105626

CHANNEL

- tube clamp

2шт.

14

S234354

BRACKET

- tube clamp

2шт.

15

S95569

WASHER

- flat, 1/2", hardened

4шт.

16

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, plated

4шт.

17

S98782

CHANNEL

- tube clamp

1шт.

18

S93266

CLAMP

- tube

16шт.
