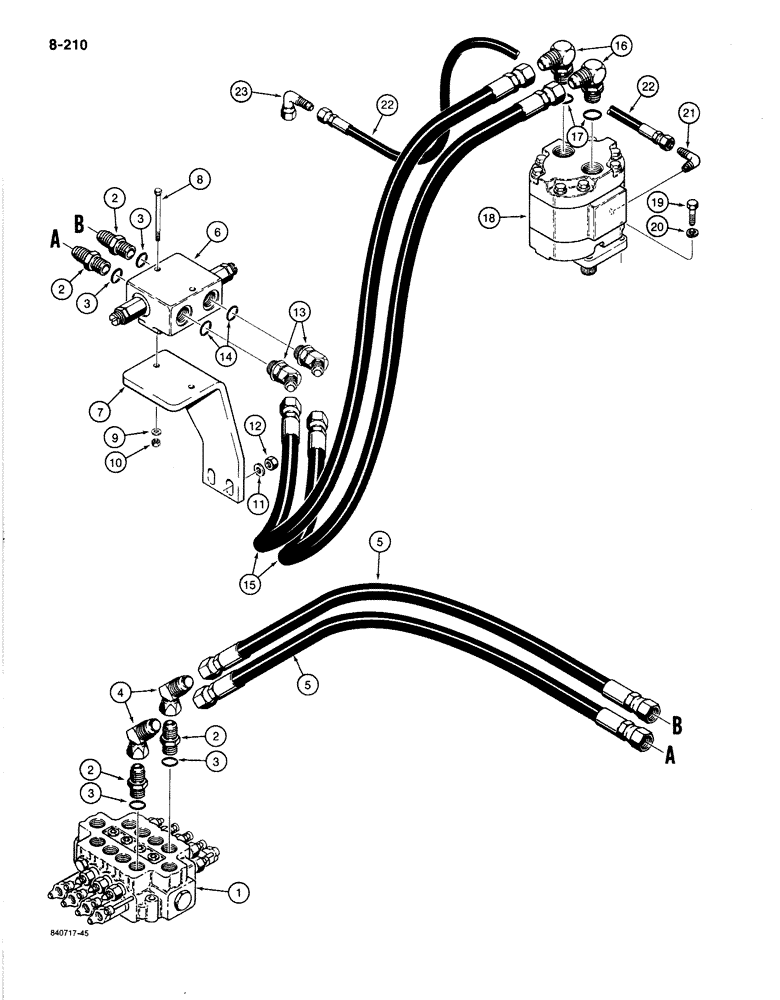

Запчасти Case 1080B (8-210) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figure 8-226 for correct and component parts

1шт.

2

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, valve parts, Incl. Ref. 3

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

4

218-5176

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Female JIC

- 45 degree

2шт.

5

S401536

HOSE

- 30" (762 mm) long, control valve to crossover relief valve

2шт.

6

S242436

VALVE

ASSEMBLY - relief, crossover, parts list Figure 8-248

1шт.

7

S516691

BRACKET

- mounting, relief valve, bolted to turntable, if used

1шт.

REF: 7,11 AND 12 WENT TO USING WELD ON BRACKET AT S/N 6271846.

1шт.

8

113-178

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex head, 5/16" -18 NC x 4-1/2", plated

2шт.

9

196-5

WASHER,13/32" x 1 1/16" x .095", HDN

- flat, 5/16", plated

2шт.

10

131-462

NUT,5/16"-18

NUT - hex, self-locking, 5/16" -18 NC, plated

2шт.

11

S95569

WASHER

- flat, 1/2", hardened, used with S516691 bracket, Ref. 7

2шт.

REF: 7,11 AND 12 WENT TO USING WELD ON BRACKET AT S/N 6271846.

1шт.

12

131-70

NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2" -13 NC, used with S516691 bracket, Ref. 7

2шт.

REF: 7,11 AND 12 WENT TO USING WELD ON BRACKET AT S/N 6271846.

1шт.

13

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 45 degree, Includes: Ref. 14

2шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 45 degree

1шт.

15

S401536

HOSE

- 30" (762 mm) long, relief, Serial Range: valve-motor

2шт.

16

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

at motor, Incl. Ref. 17 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

2шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

18

S515587

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, hydraulic, parts list Figure 8-254

1шт.

19

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

20

192-23

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

21

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, motor drain port

1шт.

22

S242341

HOSE ASSY.

HOSE - 27-9/16" (700 mm) long, motor drain

1шт.

23

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, at return line tube

1шт.
