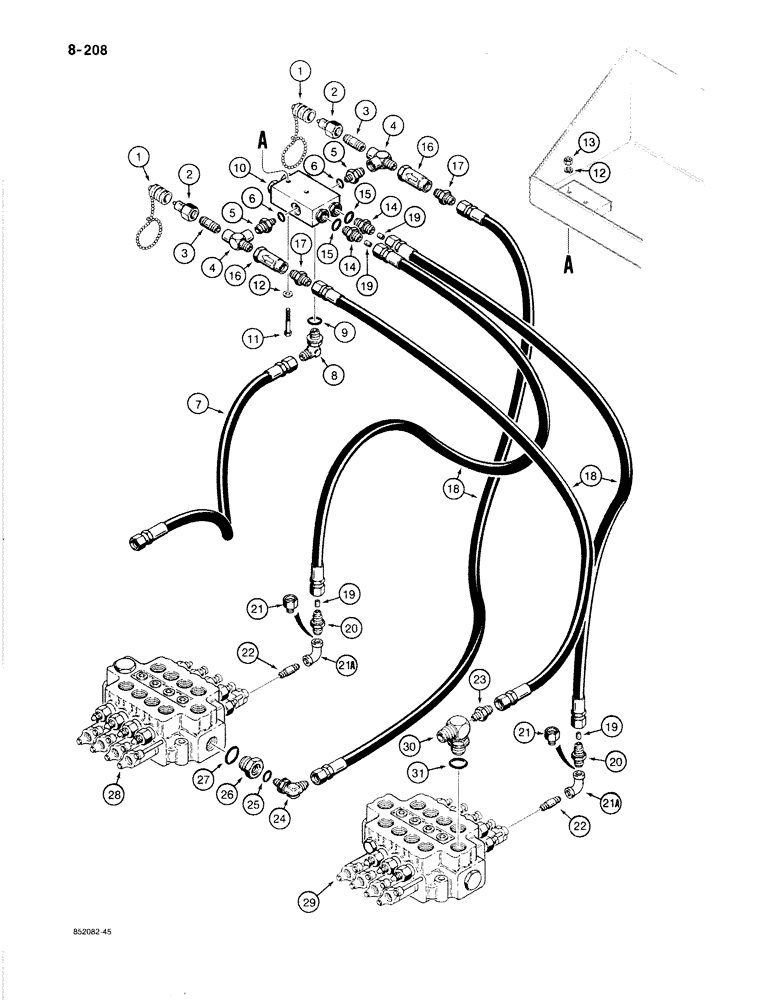

Запчасти Case 1080B (8-208) - MAIN CONTROL VALVE POWER SENSING LINES (08) - HYDRAULICS

1

S206608

CAP

- dust, with chain

2шт.

2

S206607

DISC

ADAPTER - test, quick disconnect

2шт.

3

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - 1/4" NPT x 7/8", plated

2шт.

4

217-1062

TEE,1/8" - 18 Female x 1/4" - 18 Male Run

- at side ports

2шт.

5

218-5443

FITTING

ADAPTER - straight, side ports, Includes: Ref. 6

2шт.

7

S8581

HOSE ASSY.

HOSE - 48" (1219 mm) long, return, to reservoir return

1шт.

8

218-5177

ELBOW,45 Degree Elbow, 1-5/8" - 12 Male JIC x 1-5/8" - 12 Female JIC

- 90 degree, at bottom port, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Elbow

1шт.

10

S509073

VALVE

ASSEMBLY - relief, power sensing, parts list Figure 8-246

1шт.

11

113-15

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

- hex head, 1/4" -20 NC x 2-1/4", plated

2шт.

12

195-518

WASHER,1/4", SAE

- flat, 1/4", plated

4шт.

13

86625061

NUT,1/4"-20, GB

NUT - hex, self-locking, 1/4" -20 NC, if used

2шт.

14

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, end ports, Includes: Ref. 15

2шт.

16

S98004

FILTER

SCREEN - relief valve protecting

2шт.

17

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

2шт.

18

S11227

HOSE

- 36" (914 mm) long, from control valves

4шт.

19

S114908

RESTRICTOR

- flow

4шт.

20

S120926

CONNECTOR, ELEC

ADAPTER - straight, special

2шт.

21

217-1011

ADAPTER,1/8" - 27 Male NPTF x 1/4" - 18 Female NPTF

REDUCER - 1/4" NPT x 1/8" NPT

2шт.

21a

217-1050

90 ELBOW,1/8" - 27 NPTF Female

- 90 degree, 1/8" NPT

2шт.

22

221-1908

PIPE,Nipple, 3/4" NPT x 2", X-Strng

NIPPLE - pipe, 1/8" NPT x 2", plated

2шт.

23

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

ADAPTER - straight

1шт.

24

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, Includes: Ref. 25

1шт.

26

S112222

PLUG

REDUCER - valve port, Includes: Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- reducer

1шт.

28

REF

INSTRUCTION

VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve and component parts

1шт.

29

REF

INSTRUCTION

VALVE ASSEMBLY - control, inside, see Figure 8-226 for correct valve and component parts

1шт.

30

S113093

ELBOW

- 90 degree, at innside valve, Includes: Ref. 31

1шт.

31

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- elbow

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

15

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Elbow

1шт.
