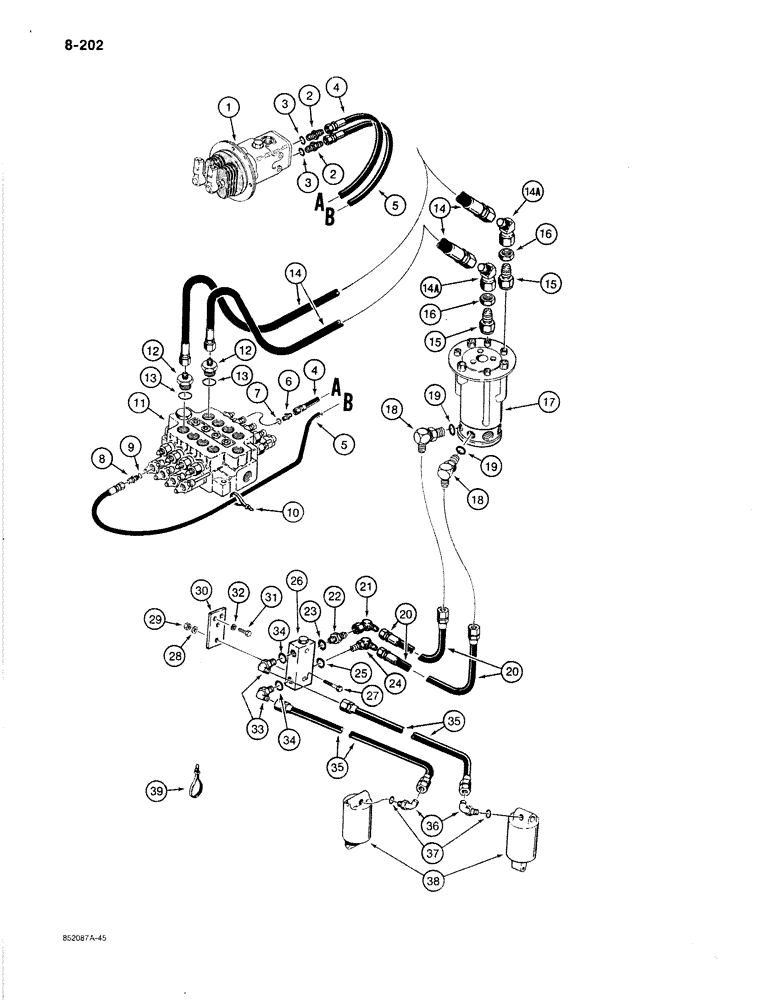

Запчасти Case 1080B (8-202) - HYDRAULIC LEVELER LINES, MODELS WITHOUT AUXILIARY HYDRAULIC CIRCUIT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
VALVE ASSEMBLY - control, right-hand lever, see Figure 8-243 for correct valve assembly
1шт.
2
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, control valve ports, Incl. Ref. 3
2шт.
4
S241220
HOSE ASSY.
HOSE - 70" (1778 mm) long, to control valve
1шт.
5
S241222
HOSE ASSY.
HOSE - 100" (2540 mm) long, to control valve
1шт.
6
218-5057
HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB
ADAPTER - straight, at control valve, Incl. Ref. 7
1шт.
8
218-5029
HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB
CONNECTOR, HYD, , Adapter, long, at control valve, Includes: Ref. 9 9/16"-18, 37º x 9/16"-18, Pipe
1шт.
10
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
11
REF
INSTRUCTION
VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve and component parts
1шт.
12
218-5071
HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB
ADAPTER - straight, Includes: Ref. 13
2шт.
14
S11231
HOSE ASSY.
HOSE - 68" (1727 mm) long, to swivel assembly
2шт.
14a
218-5173
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC
- 45 degree
2шт.
15
218-796
REDUCER,37 Degree, 5/8" x 3/8" Tube
ADAPTER - tube to hose
2шт.
16
218-346
TUBE NUT,37 Degree, 1 1/16"-12, Type B
NUT - adapter
2шт.
17
S618820
LINK
SWIVEL ASSEMBLY - hydraulic, parts list Figure 8-256
1шт.
18
218-5121
ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB
- 90 degree, Includes: Ref. 19
2шт.
19
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk, Elbow
1шт.
20
S11227
HOSE
- 36" (914 mm) long, to check valve
2шт.
21
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
- 90 degree
1шт.
22
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, Incl. Ref 23
1шт.
23
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Adapter
1шт.
24
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, Includes: Ref. 25
1шт.
25
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Elbow
1шт.
26
S516733
VALVE, CHECK
VALVE ASSEMBLY - check, leveler, parts list Figure 8-250
1шт.
27
814-8050
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
- hex, 8 - 1.25 x 50 mm (8.8), plated
2шт.
28
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
- hex, self-locking, 8 mm - 1.25, Special
2шт.
29
S118772
NUT
- hex, self-locking, 8 mm - 1.25, special
2шт.
30
S119989
BRACKET
PLATE - check valve mounting
1шт.
31
813-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex head, 8 mm - 1.25 x 25 mm, plated
2шт.
32
892-1008
LOCK WASHER,M8
WASHER - lock, 8 mm
2шт.
33
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, check valve ports, Includes: Ref. 34
2шт.
34
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Elbow
1шт.
35
S11226
HOSE
- 20" (508 mm) long, to leveler cylinders
2шт.
36
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, at leveler cylinders, Includes: Ref. 37
2шт.
37
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk, Elbow
1шт.
38
S56810
CYLINDER
ASSEMBLY - leveler, parts list Figure 8-266
2шт.
39
L18337
CABLE TIE,9.95"-12.1" lg
STRAP - tie, 15 inch, nylon
1шт.
3
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Adapter
1шт.
7
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Adapter
1шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Adapter
1шт.
Выбрано товаров: 40
