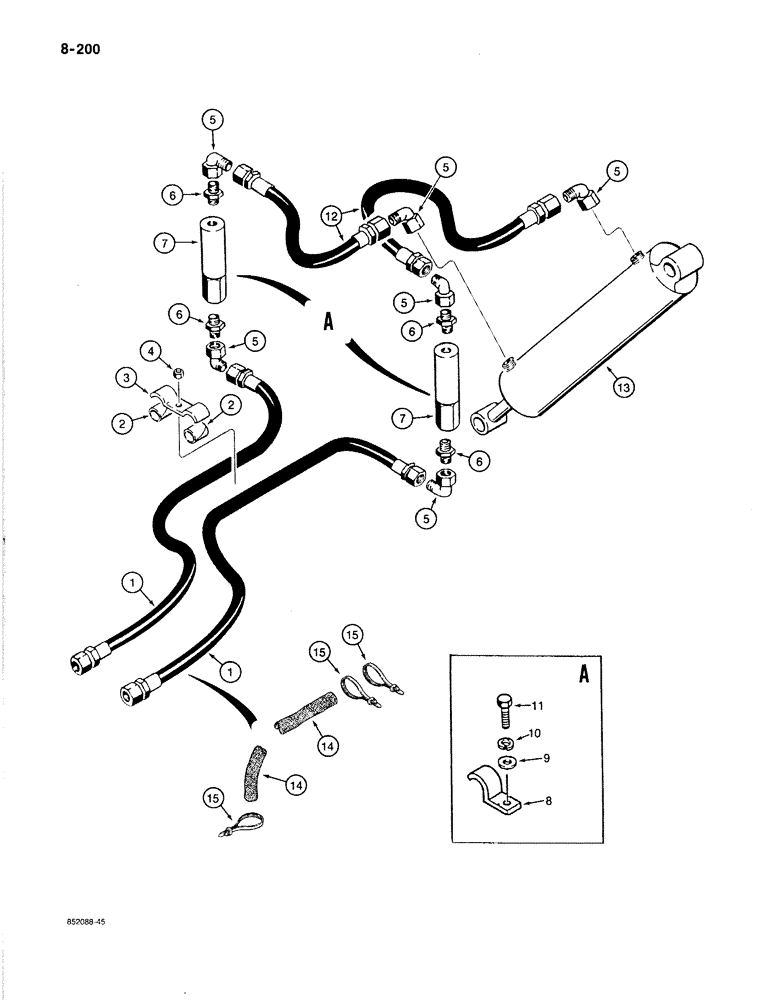

Запчасти Case 1080B (8-200) - WRIST-O-TWIST HYDRAULIC LINES (08) - HYDRAULICS

1

S11229

HOSE ASSY.

HOSE - 49" (1245 mm) long, to flow control valve

2шт.

2

S75792

RING

- compression, hose

2шт.

3

D38835

CLAMP

- hose

1шт.

4

131-463

NUT,3/8"-16

NUT - hex, lock, 3/8" NC, plated

1шт.

5

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, at flow control valves and cylinder

6шт.

6

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - male, straight

4шт.

7

T54632

VALVE

ASSEMBLY - flow control, parts list Figure 8-252

2шт.

8

L32065

CLAMP

- flow control, Serial Range: valves-frame

4шт.

9

196-1

WASHER,13/32" x 13/16" x .089", HDN

- flat, 3/8", plated

4шт.

10

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

S11226

HOSE

- 20" (508 mm) long, flow control, Serial Range: valves-cylinder

2шт.

13

S618639

CYLINDER

ASSEMBLY - wrist-o-twist, parts list Figure 8-268

14шт.

14

S120425

SLEEVE

- hose protector

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.
