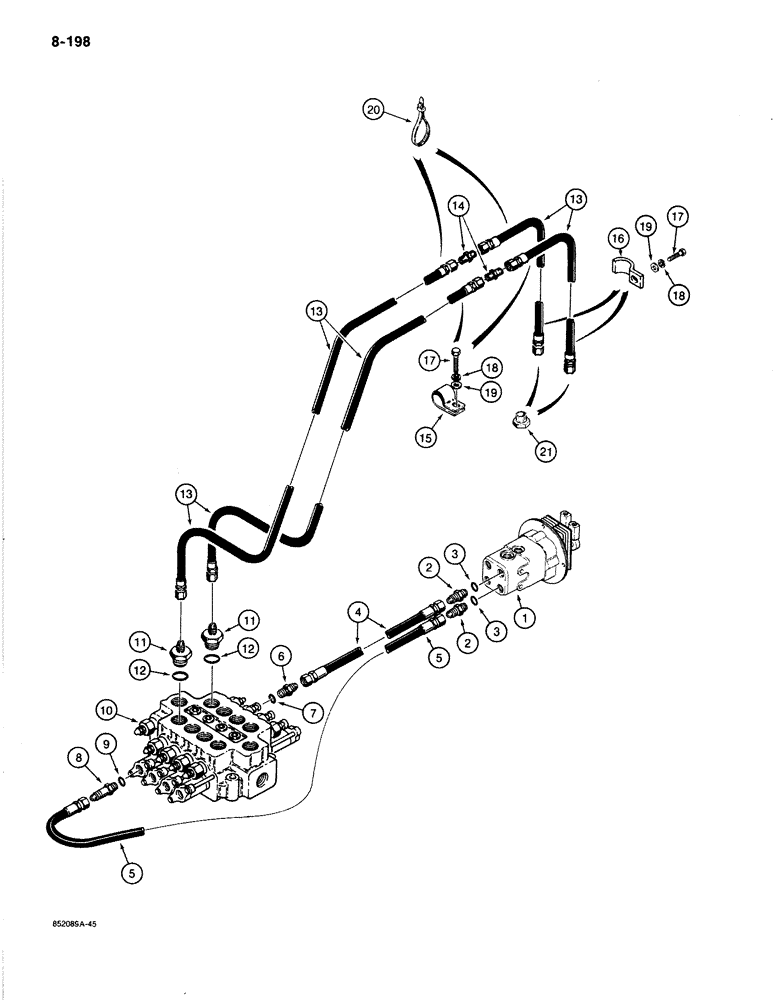

Запчасти Case 1080B (8-198) - AUXILIARY HYDRAULIC LINES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, left-hand lever, parts list Figure 8-243

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, control valve ports, Incl. Ref. 3

2шт.

4

S241220

HOSE ASSY.

HOSE - 70" (1778 mm) long, to outside valve

1шт.

5

S241222

HOSE ASSY.

HOSE - 100" (5240 mm) long, to outside valve

1шт.

6

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, short, front valve cap, Incl. Ref. 7

1шт.

8

218-5029

HYD CONNECTOR,9/16" - 18 Male JIC x 9/16" - 18 Male ORB

CONNECTOR, HYD, , Adapter, long, rear valve cap, Includes: Ref. 9 9/16"-18, 37º x 9/16"-18, Pipe

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, outside, see Figures 8-231 and 8-233 for correct valve components

1шт.

11

218-5071

HYD CONNECTOR,3/4" - 16 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, Includes: Ref. 12

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- adapter

1шт.

13

S75758

HOSE

- 246" (6248 mm) long, to auxilary equipment

4шт.

14

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

CONNECTOR - straight, hose to hose

2шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- hose

14шт.

16

S45219

CLAMP

- hose

2шт.

17

813-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, 8 mm - 1.25 x 20 mm, plated

16шт.

18

892-1108

LOCK WASHER,M8

plated M8

16шт.

19

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

16шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

218-775

PLUG,3/4"-16, 37 Degree

Hose end 3/4"-16, 37º

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Adapter

1шт.
